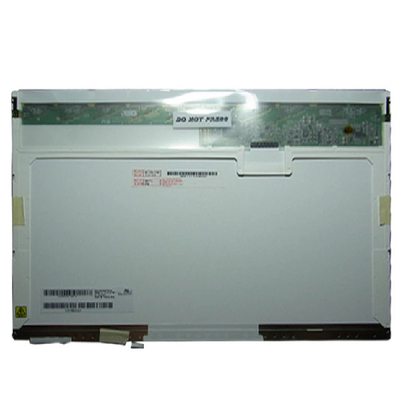

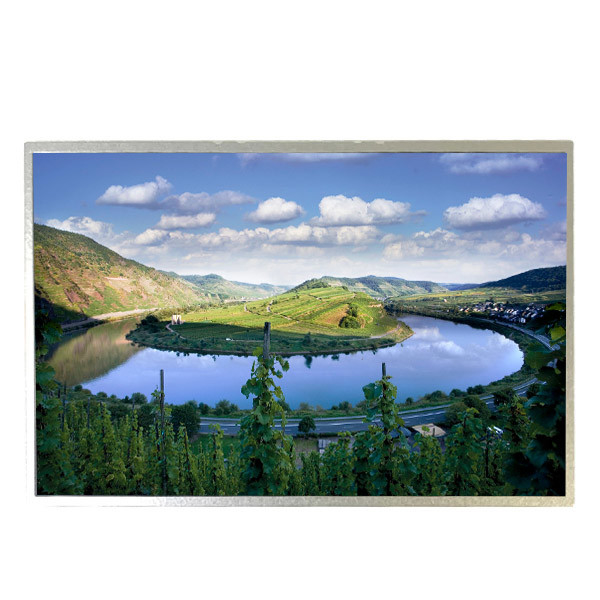

AUO 13.0 inch B131EW01 V0 TFT LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B131EW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B131EW01 V0 | Screen Size: | 13.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×768 [WXGA] 114PPI | Active Area: | 284.2(H)×170.5(V) Mm |
| Outline Dim.: | 299(H)×184.5(V) ×5.9(D) Mm | Bezel Area: | 287.16(H)×173.5(V) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Contrast Ratio: | 350:1 (Typ.) (TM) |
Product Description
AUO 13.0 inch B131EW01 V0 TFT LCD Panel Screen
Product details :
| AUO LCD SCREEN B131EW01 V0 (QDS001A) | |
| Panel Brand | AUO |
| Panel Model | B131EW01 V0 (QDS001A) |
| Panel Size | 13.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×768 [WXGA] 114PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 284.2(H)×170.5(V) mm |
| Bezel Opening | 287.16(H)×173.5(V) mm |
| Outline Size | 299(H)×184.5(V) ×5.9(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 350:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 42% NTSC |
| Lamp Type | CCFL [1 pcs] , 10K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Signal Interface | 30 pins LVDS (1 ch, 6-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| AUO 13.0 inch B131EW01 V0 TFT LCD Panel Screen | |
