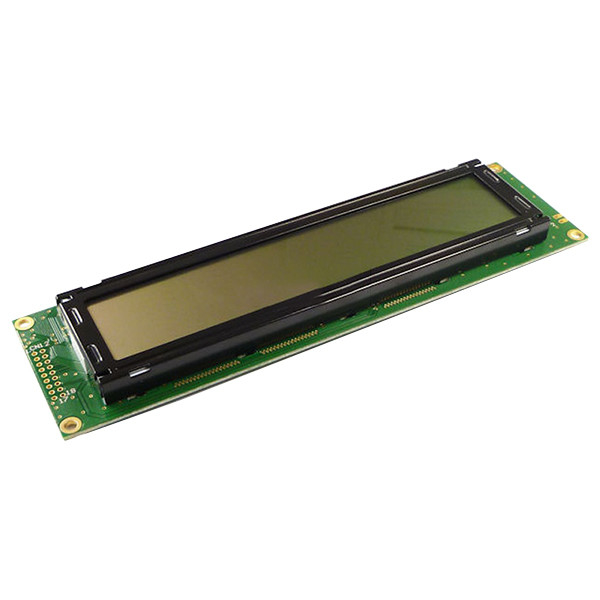

new and original LCD C-51849NFJ-SLW-ADN LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | C-51849NFJ-SLW-ADN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C-51849NFJ-SLW-ADN | Screen Size: | 5.6 Inch |
|---|---|---|---|
| Display Format: | 40 Characters × 4 Lines, 7PPI | Font Format: | 5×8 Dots |
| Character Size: | 2.78×4.89(W×H) Mm | Character Pitch: | 3.53×6.09(W×H) Mm |
| Display Area: | 140.45(W)×23.16(H) Mm | Bezel Opening: | 147.0(W)×29.5(H) Mm |
| Outline Size: | 190(W)×54(H) ×14.6(D) Mm | Weight: | 146g (Max.) |
Product Description
new and original LCD C-51849NFJ-SLW-ADN LCD Screen Display Panel
Product details :
| Kyocera LCD SCREEN C-51849NFJ-SLW-ADN | |
| manufacturer | Kyocera |
| Model Name | C-51849NFJ-SLW-ADN |
| screen size | 5.6 inch |
| Screen type | FSTN-LCD , LCM |
| Resolution | 40 characters × 4 lines, 7PPI |
| Font Format | 5×8 dots |
| Character Size | 2.78×4.89(W×H) mm |
| Character Pitch | 3.53×6.09(W×H) mm |
| Display Area | 140.45(W)×23.16(H) mm |
| Bezel Opening | 147.0(W)×29.5(H) mm |
| Outline Size | 190(W)×54(H) ×14.6(D) mm |
| Contrast Ratio | 5:1 (Typ.) (TM) |
| Viewing Angle | 45/30/40/25 (Typ.)(CR≥3) |
| Display Mode | STN, Black/White (Positive), Transflective |
| Best View on | 6 o'clock |
| Response Time | 80/130 (Typ.)(Tr/Td) |
| Display Colors | Monochrome |
| Lamp Type | 1S3P WLED , Without Driver |
| Touch Screen | Without |
| Weight | 146g (Max.) |
| Application | Instruments & Meters |
| Signal Interface | 8-bit parallel , 18 pins Pad |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| new and original LCD C-51849NFJ-SLW-ADN LCD Screen Display Panel | |
warn! ! !
warn:
* Installation guide is not included and we are not responsible for any damage caused by installing this accessory. Please make sure you know how to install before bidding, thank you for your understanding!
* We cannot guarantee that you will receive tablet-compatible content,
*If you do not accept A+ compatible touch screen digitizers, but they have different cable numbers, such as our title/description/connection pictures have been removed, please do not buy, thank you!
We test all products before sending. But we can't control everything and the screen can be easily damaged during shipping. So please test the product before installation. If you have any problem, please do not install it and contact us. If you do not test the installation, we will not provide after-sales service or refunds. We are not responsible for any problems that occur during installation.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long will I receive my goods of C-51849NFJ-SLW-ADN ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for Kyocera C-51849NFJ-SLW-ADN ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd module C-51849NFJ-SLW-ADN at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: What happen if the C-51849NFJ-SLW-ADN I receive can't work ?
A: The Kyocera C-51849NFJ-SLW-ADN will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
