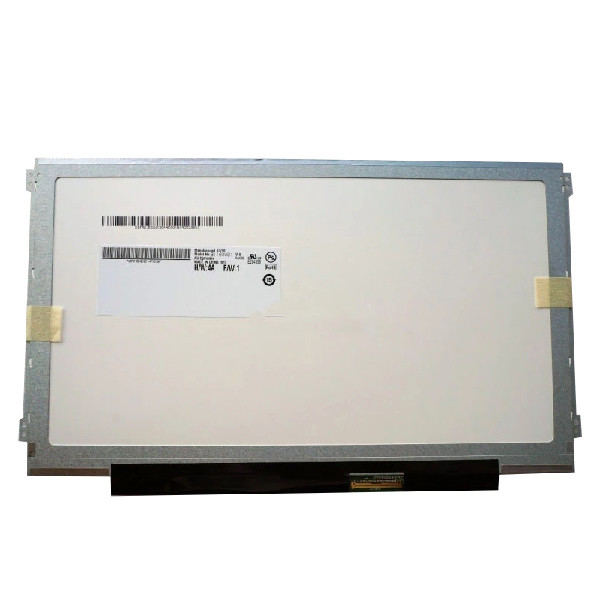

Brand new AUO TFT 11.6 inch LED module B116XW01 V1 LCD Laptop Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XW01 V1 | Screen Size: | 11.6 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 135PPI | Display Area: | 256.125(W)×144(H) Mm |
| Outline Size: | 278(W)×167(H) Mm | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Application: | Netbook PC / Laptop |
Product Description
Brand new AUO TFT 11.6 inch LED module B116XW01 V1 LCD Laptop Screen
Product details :
| AUO LCD SCREEN B116XW01 V1 | |
| manufacturer | AUO |
| Model Name | B116XW01 V1 |
| screen size | 11.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 135PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 256.125(W)×144(H) mm |
| physical dimension | 278(W)×167(H) mm |
| surface treatment | Antiglare |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Responding time | 6/2 (Typ.)(Tr/Td) |
| Number of color | 262K 45% NTSC |
| Backlight type | WLED , 10K hours , With LED Driver |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Apply to | Netbook PC / Laptop |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -20 ~ 60 °C |
| Brand new AUO TFT 11.6 inch LED module B116XW01 V1 LCD Laptop Screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping and Payment:
Due to stock status and time differences,
We will choose to ship your item from our first available warehouse
Fast delivery.
1. Country Approximate Delivery Time
China Post airmail
US, UK, Australia 20-30 working days
Canada, Western Europe, Northern Europe, Central Europe 20-30 working days
20-30 working days for other countries
Fedex or DHL North America Australia, Western Europe, Northern Europe, Central Europe 3-7 business days
5-10 working days for other countries
FAQ:
Q: How long is the warranty of B116XW01 V1 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of B116XW01 V1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B116XW01 V1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B116XW01 V1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
