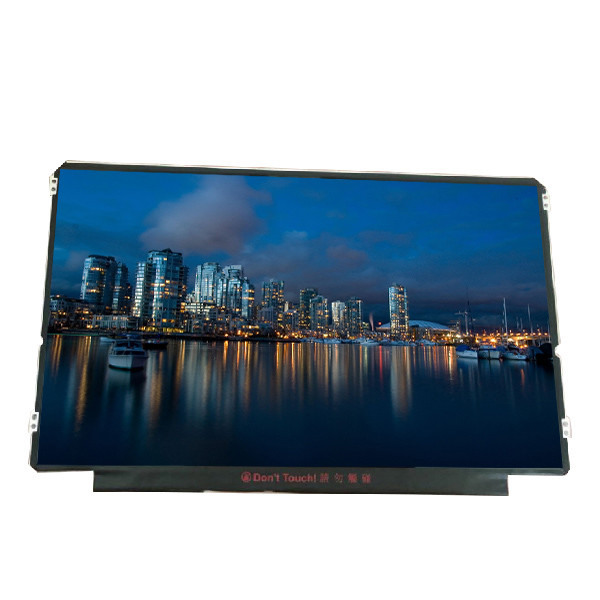

For Dell Chrome 11-3120 B116XTT01.0 Laptop LCD Screen with touch HD 1366X768 LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XTT01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XTT01.0 (AUO105C) | Screen Size: | 11.6 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 135PPI | Display Area: | 256.125(W)×144(H) Mm |
| Outline Size: | 278(W)×172.54(H) ×4.9(D) Mm | Best View On: | 6 O'clock |
| Touch Screen: | PCAP | Application: | Laptop |
Product Description
For Dell Chrome 11-3120 B116XTT01.0 Laptop LCD Screen with touch HD 1366X768 LCD panel
Product details :
| AUO LCD SCREEN B116XTT01.0 (AUO105C) | |
| Panel Brand | AUO |
| Panel Model | B116XTT01.0 (AUO105C) |
| Panel Size | 11.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 [WXGA] 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 256.125(W)×144(H) mm |
| Outline Size | 278× 168× 3mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (7H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 8 (Typ.)(G to G) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (1 Lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| For Dell Chrome 11-3120 B116XTT01.0 Laptop LCD Screen with touch HD 1366X768 LCD panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping and Payment:
1. Worldwide Shipping. (except some countries and APO/FPO)
2. The order will be processed in time after payment is confirmed.
3. We only ship to the confirmed order address. your address
The order must match your shipping address.
4. Service transit time is provided by the carrier
Excludes weekends and holidays. Transit time can
change, especially during the holiday season.
5. If you do not receive your goods within 30 days after payment,
Contact us and we will track the shipment and get back to you as soon as possible.
Our goal is to keep our customers happy!
FAQ:
Q: Can you give me a discount if I need a large quantity of B116XTT01.0 (AUO105C) ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B116XTT01.0 (AUO105C) ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of B116XTT01.0 (AUO105C) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of B116XTT01.0 (AUO105C) ?
A: Of course!sample order is welcome !
