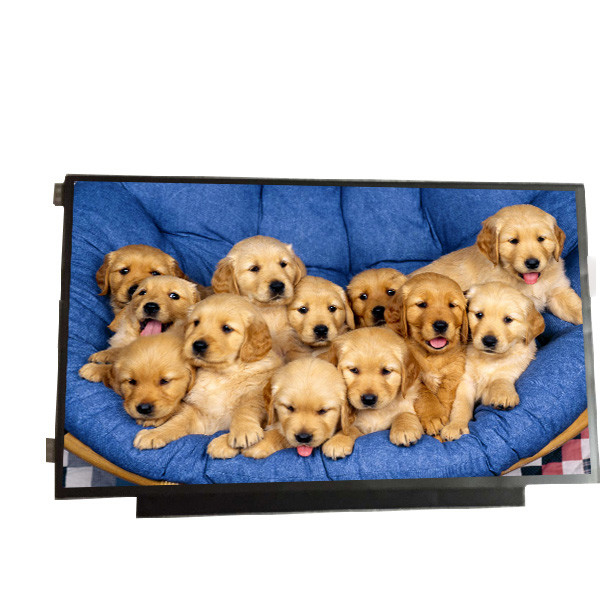

AUO 11.6 inch LCD Display Panel B116XTK01.1 with LCD Digitizer Touch Screens Assembly B116XTK01.1
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XTK01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XTK01.1 | Screen Size: | 11.6 Inch |
|---|---|---|---|
| Display Area: | 256.125(W)×144(H) Mm | Outline Dim.: | 278(W)×168.01(H) ×3.2(D) Mm |
| Contrast Ratio: | 400:1 (Typ.) (TM) | Shape Style: | Slim (PCBA Flat, T≤3.2mm) |
| Touch Screeno: | On-Cell Touch | Application: | Laptop |
Product Description
AUO 11.6 inch LCD Display Panel B116XTK01.1 with LCD Digitizer Touch Screens Assembly B116XTK01.1
Product details :
| AUO LCD SCREEN B116XTK01.1 | |
| manufacturer | AUO |
| Model Name | B116XTK01.1 |
| screen size | 11.6 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1366(RGB)×768 WXGA 135PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 256.125(Horizontal)×144(Vertical) mm |
| physical | 278 × 168.01 × 3.2 mm (H×V×D) |
| Surface | Antiglare |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding | 8 (Typ.)(Tr+Td) |
| Number of | 262K , 45% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Screen weight | Thin screen (PCBA straight, thickness ≤ 3.2mm) |
| Apply to | notebook |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| signal system | eDP (1 Lane), 40 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| AUO 11.6 inch LCD Display Panel B116XTK01.1 with LCD Digitizer Touch Screens Assembly B116XTK01.1 | |
Contact us:
1. If you have any questions, please feel free to leave a message to contact us, we will reply you within one working day. (excluding holidays)
2. Working hours: Monday to Saturday
3. If you don't hear back within 1-2 business days, please check your email or my message in case your email provider has an overly aggressive pest filter blocking or my email. Please add us in your contact details and email us again.
4. Bulk order is acceptable, bulk order will offer lower price.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long will I receive my goods of B116XTK01.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for AUO B116XTK01.1 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty of B116XTK01.1 ?
A: 90days warranty .
Q: How can I trace my order of B116XTK01.1 ?
A: we will give you tracking number then you can trace your order from website.
