LCD Laptop Screen

B116XTB01.0 with Touch Panel for Acer Chromebook R11 C738T 11.6 inch lcd screen

All Category

Floor Standing Digital Signage

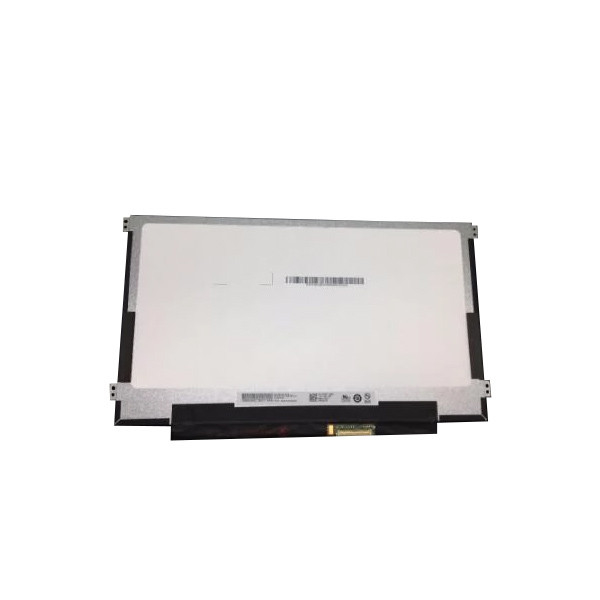

B116XTB01.0 with Touch Panel for Acer Chromebook R11 C738T 11.6 inch lcd screen

Brand Name:	AUO
Model Number:	B116XTB01.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B116XTB01.0 (AUO105C)

Screen Size:

11.6 Inch

Resolution:

1366(RGB)×768, WXGA, 135PPI

Display Area:

256.125(W)×144(H) Mm

Outline Dim.:

284.1(W)×185(H) ×4.2(D) Mm

Luminance:

200 Cd/m² (Typ.)

Touch Screeno:

On-Cell Touch

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

B116XTB01.0 with Touch Panel for Acer Chromebook R11 C738T 11.6 inch lcd screen

Product details :

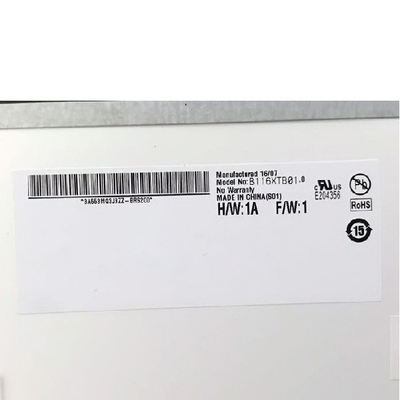

AUO LCD SCREEN B116XTB01.0 (AUO105C)
manufacturer	AUO
model	B116XTB01.0 (AUO105C)
Panel type	a-Si TFT-LCD, Assembly
Panel size	11.6"
Resolution	1366(RGB)×768, WXGA, 135PPI
Pixel Format	RGB Vertical Stripe
Display Area	256.125(W)×144(H) mm
Outline Size	284.1(W)×185(H) ×4.2(D) mm
Surface	Hard coating (3H)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Best View on	6 o'clock
Response Time	8 (Typ.)(Tr+Td)
Display Colors	262K 45% NTSC
Lamp Type	WLED , 15K hours , With LED Driver
Frequency	60Hz
Touch Screen	On-Cell Touch
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Application	Laptop
Signal Interface	eDP (1 Lane) , eDP1.2 , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
B116XTB01.0 with Touch Panel for Acer Chromebook R11 C738T 11.6 inch lcd screen

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

B116XTB01.0 with Touch Panel for Acer Chromebook R11 C738T 11.6 inch lcd screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Shipping:

We use Aliexpresss standard for shipping EMS DHL fedex etc. You can choose when ordering. Items will be shipped within 1-2 business days after payment. (Some products require more days to count inventory) Each order comes with a tracking number, which we will send to you. Packing: anti-static bag + bubble bag + bubble chamber + suitable cardboard box.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods B116XTB01.0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of B116XTB01.0 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of B116XTB01.0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
