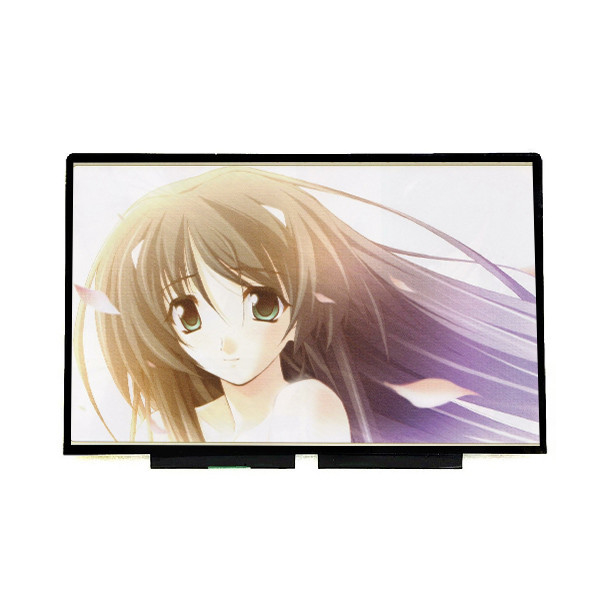

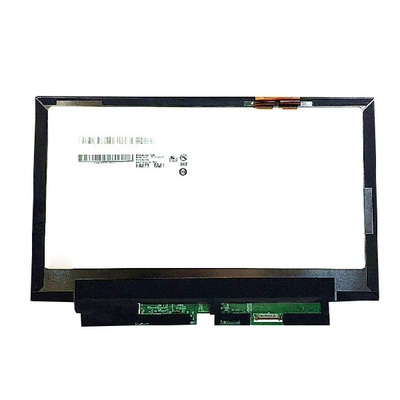

11.6 inch B116XAT02.0 LED LCD Display Touch Screen Digitizer Assembly for Lenov IdeaPad Yoga 11S 20246 Ultrabook
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAT02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XAT02.0 | Screen Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 135PPI | Display Area: | 256.125(W)×144(H) Mm |
| Outline Dim.: | 293(W)×193.79(H) Mm | Luminance: | 370 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Min.) (TM) | Application: | Laptop |
Product Description
11.6 inch B116XAT02.0 LED LCD Display Touch Screen Digitizer Assembly for Lenov IdeaPad Yoga 11S 20246 Ultrabook
Product details :
| AUO LCD SCREEN B116XAT02.0 | |
| manufacturer | AUO |
| Model Name | B116XAT02.0 |
| screen size | 11.6 inch |
| Screen type | a-Si TFT-LCD , Assembly |
| Resolution | 1366(RGB)×768 WXGA 135PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 256.125(W)×144(H) mm |
| physical | 293(W)×193.79(H) mm |
| Surface | Hard coating (9H) |
| Brightness | 370 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Best angle | Full perspective |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| responding | 25 (Typ.)(Tr+Td) |
| Number of | 262K , 50% NTSC |
| Backlight type | WLED, 10K hours, with LED driver |
| Apply to | Laptop |
| Refresh rate | 60Hz |
| Touch function | Projection capacitance touch screen |
| signal system | eDP (2 Lanes), connector, 30 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 11.6 inch B116XAT02.0 LED LCD Display Touch Screen Digitizer Assembly for Lenov IdeaPad Yoga 11S 20246 Ultrabook | |
After-sale service:
This product is guaranteed for 6 months from the date of receipt by the customer, man-made damage is not covered by the warranty, and the seller is not covered by the warranty. The freight refund will be refunded after receiving the returned package. All products are marked with logos, please do not tear them up, otherwise there will be no warranty, thank you for your understanding.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How can I trace my order of B116XAT02.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of B116XAT02.0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of B116XAT02.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
