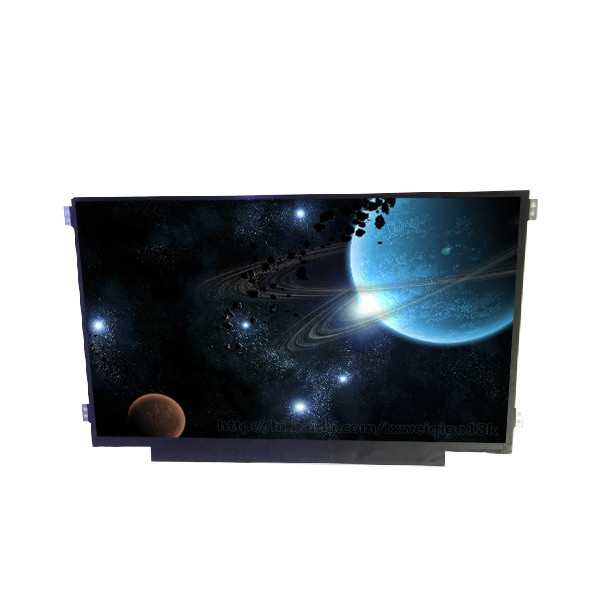

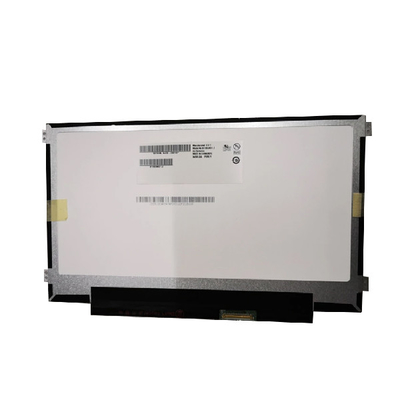

Original laptop LCD touch screen display panel for Dell 11 3100 Chromebook 11.6 inch B116XAK01.0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAK01.0 (AUO405C) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XAK01.0 (AUO405C) | Screen Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 [WXGA] 135PPI | Display Area: | 256.125(H)×144(V) Mm |
| Outline Dim.: | 278(H)×168.02(V) ×3.2(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Application: | Laptop |
Product Description
Original laptop LCD touch screen display panel for Dell 11 3100 Chromebook 11.6 inch B116XAK01.0
Product details :
| AUO LCD SCREEN B116XAK01.0 | |
| manufacturer | AUO |
| Model Name | B116XAK01.0 (AUO405C) |
| screen size | 11.6 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1366(RGB)×768 [WXGA] 135PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 256.125 × 144 mm (H×V) |
| physical | 278(W)×168.02(H) ×3.2(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 800: 1 (Typ.) [Transmission] |
| Best angle | Full perspective |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| responding | 27 (Typ.)(Tr+Tf) ms |
| Number of | 262K, 50% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Apply to | Notebook |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| signal system | eDP (1 Lane), eDP1.2, 40 pins, connector |
| Supply voltage | 3.3V (Typ |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 60 °C |
| Original laptop LCD touch screen display panel for Dell 11 3100 Chromebook 11.6 inch B116XAK01.0 | |
