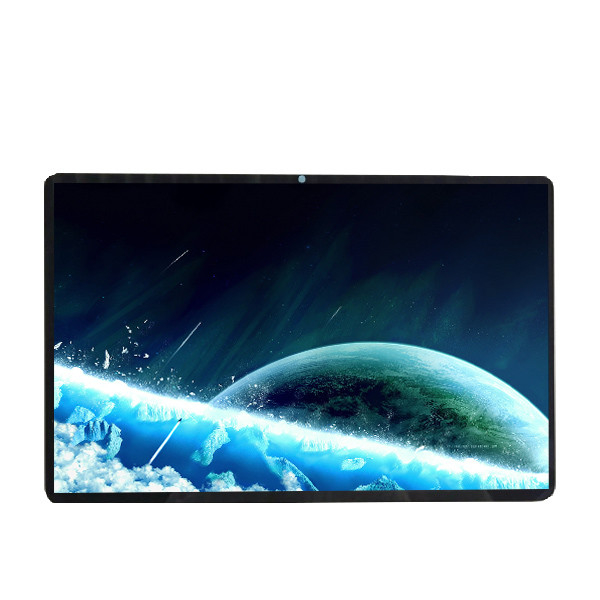

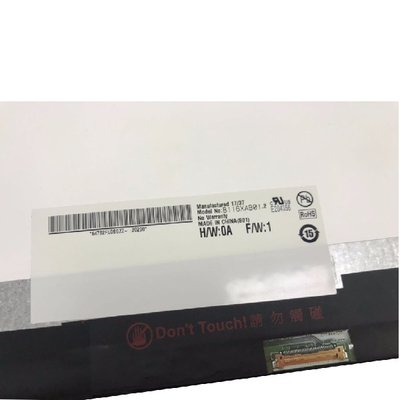

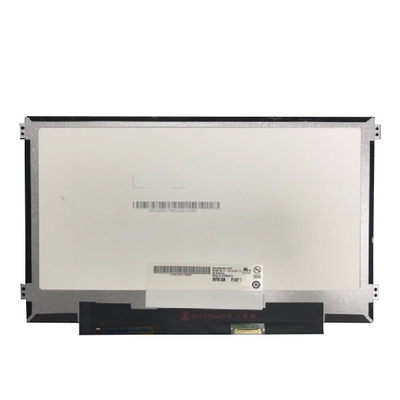

11.6 inch LCD Touch screen display B116XAB01.2 For Dell Chromebook 11
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAB01.2 (AUO125C) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XAB01.2 (AUO125C) | Screen Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 [WXGA] 135PPI | Display Area: | 256.125(H)×144(V) Mm |
| Outline Dim.: | 287.7(H)×185.6(V) ×4.2(D) Mm | Luminance: | 220 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Application: | Laptop |
Product Description
11.6 inch LCD Touch screen display B116XAB01.2 For Dell Chromebook 11
Product details :
| AUO LCD SCREEN B116XAB01.2 | |
| manufacturer | AUO |
| Model Name | B116XAB01.2 (AUO125C) |
| screen size | 11.6 inch |
| Screen type | a-Si TFT-LCD , Assembly |
| Resolution | 1366(RGB)×768 [WXGA] 135PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 256.125 × 144 mm (H×V) |
| physical | 287.7 × 185.6 × 4.2 mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (7H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast | 800: 1 (Typ.) [Transmission] |
| Best angle | Symmetry |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| responding | 27 (Typ.)(Tr+Td) ms |
| Number of | 262K, 50% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Apply to | Notebook |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| signal system | eDP (1 Lane) , eDP1.2 30 pins Connector |
| Supply voltage | 3.3V (Typ |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 11.6 inch LCD Touch screen display B116XAB01.2 For Dell Chromebook 11 | |
Notice:
We are a professional factory for LCD panels. We offer thousands of LCD screens. The more you need, the lower the price.
1. Each screen is tested and 100% working properly before leaving the factory; repair/replace old, broken, cracked, damaged and faulty touchscreens.
2. Please turn on the tablet to view the touch screen cable and code. Because the same tablet has different touch screen cables.
3. Please leave your accurate full name (especially the Russian buyer) and contact number when filling in the buyer's information, so that the courier can deliver your items in a timely and convenient manner.
4. If your touch screen cable is different from the picture on the web, we can only guarantee that what you receive is compatible with your tablet! So if you don't accept A+ grade compatible touchscreen digitizers with different flex cable numbers, please do not buy because our title/description/photo status is out of stock in the market, thank you!
5. After receiving the package, please take a video when you open the package. (In the event of damage in transit, you can use this video as proof of dispute.)
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of B116XAB01.2 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of B116XAB01.2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order B116XAB01.2 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for B116XAB01.2 ?
A: Of course!sample order is welcome !
