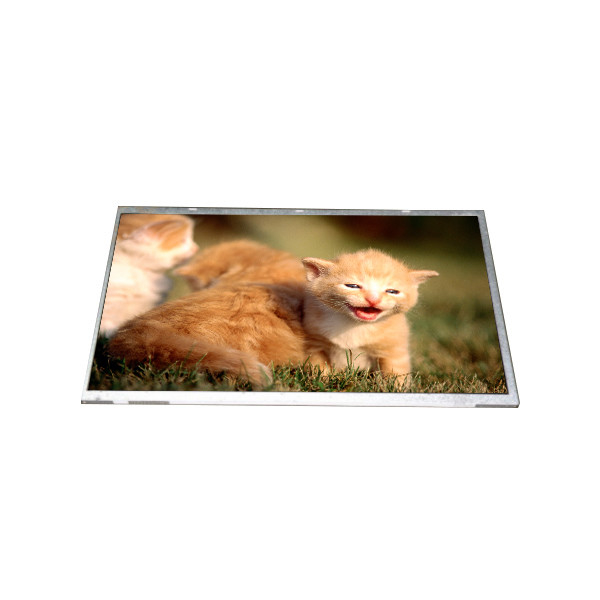

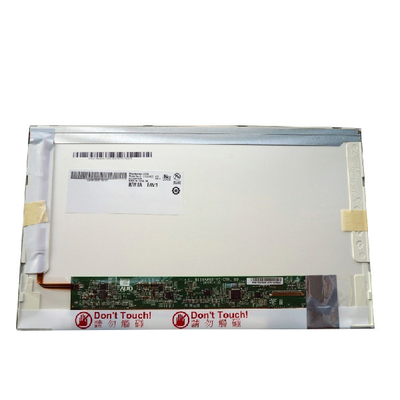

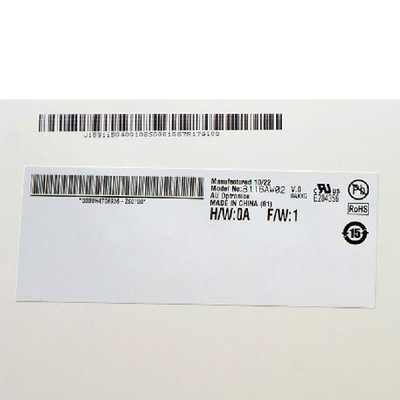

B116AW02 V0 11.6 inch Laptop LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116AW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116AW02 V0 (AUO2052) | Screen Size: | 11.6 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 [WSVGA] 102PPI | Display Area: | 256.05(H)×144(V) Mm |
| Outline Dim.: | 268(H)×161.5(V) ×5.2(D) Mm | Bezel Opening: | 260.175(H)×148.15(V) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Used For: | Netbook PC |
Product Description
B116AW02 V0 11.6 inch Laptop LCD Screen Display Panel
Product details :
| AUO LCD SCREEN B116AW02 V0 (AUO2052) | |
| Panel Brand | AUO |
| Panel Model | B116AW02 V0 (AUO2052) |
| Panel Size | 11.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×600 [WSVGA] 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 256.05 × 144 mm (H×V) |
| Bezel Opening | 260.175 × 148.15 mm (H×V) |
| Outline Size | 268 × 161.5 × 5.2 mm (H×V×D |
| Surface | Glare (Haze 0%) |
| Brightness | 200 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Designed For | Netbook PC |
| Frequency | 60Hz |
| Touch Screen | Without |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| B116AW02 V0 11.6 inch Laptop LCD Screen Display Panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Refund&Exchange:
1.) All parts will be tested before shipment, we are not responsible for any problems caused by unprofessional operation.
2.) If you are not satisfied with your purchase, you can exchange the item received, but you must contact us within 2 days of receiving the order, but you must pay all additional shipping costs, returned items should be kept in their Original state.
3.) We will refund the parts as soon as we receive them, shipping is not refundable. Return shipping will be paid by the buyer.
In order to get the best after-sales service in time, please try to shoot video!
1. If you find a broken box or broken item ---> make a video of unboxing/or a clear photo of the item ---> contact us and send the video!
2. If you receive a non-working item; reset or update after installation, if it still doesn't help, make a test video -----> Contact us and send a video
FAQ:
Q: How do you ship my goods B116AW02 V0 (AUO2052) ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AUO B116AW02 V0 (AUO2052)?
A: 90 days warranty .
Q: How can I trace my order of B116AW02 V0 (AUO2052) ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of B116AW02 V0 (AUO2052) ?
A: Of course!If you make a large order, we will give you a discount.
