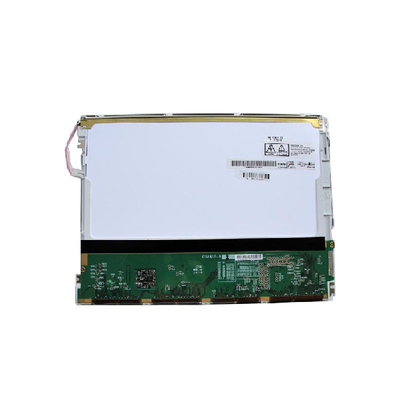

B104SN01 V0 10.4 inch LCD Screen Display for AUO tft lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B104SN01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B104SN01 V0 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Outline Dim.: | 236(W)×174.3(H) ×5.7(D) Mm | Bezel Opening: | 215.0(W)×162.0(H) Mm |
| Lamp Type: | 1 Pcs CCFL , 10K Hours , Without Driver | Used For: | Laptop |
Product Description
B104SN01 V0 10.4 inch LCD Screen Display for AUO tft lcd screen
Product details :
| AUO LCD SCREEN B104SN01 V0 | |
| manufacturer | AUO |
| Model Name | B104SN01 V0 |
| screen size | 10.4 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 211.2(W)×158.4(H) mm |
| physical | 236(W)×174.3(H) ×5.7(D) mm |
| Visual size | 215.0(W)×162.0(H) mm |
| Outline Size | 236(W)×174.3(H) ×5.7(D) mm |
| Brightness | 150 (Typ. |
| Contrast | 250: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding | 20/30 (Typ.)(Tr/Td) ms |
| Number of | 262K |
| Backlight type | 1 pcs CCFL, 10K hours, no driver |
| Apply to | Laptop |
| Refresh rate | 60Hz |
| Touch function | Without |
| signal system | VDS (1 ch, 6-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 70 °C Working temperature: -10 ~ 60 °C |
| B104SN01 V0 10.4 inch LCD Screen Display for AUO tft lcd screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
1.) Items will be dispatched within 2-5 business days after payment confirmation. Free shipping is via China Post Air Mail/Hong Kong Post Mail; we will provide tracking numbers for all shipping methods. You can follow it on their official website.
2.) We are not responsible for the carrier's transit time. This information is provided by the carrier and excludes weekends and holidays.
3.) If you choose DHL or UPS, Brazilian buyers must provide CPF number in advance, otherwise we must ship by EMS.
4.) All buyers need to pay extra for remote area service via DHL, UPS or Fedex, but EMS is not required.
5.) Delivery times may vary, especially during periods or bad weather conditions. Please do not file a dispute before contacting us. If you are in a hurry, please choose DHL or other express!
If you do not receive it on time, we can extend the delivery time for you.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of B104SN01 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of B104SN01 V0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of B104SN01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
