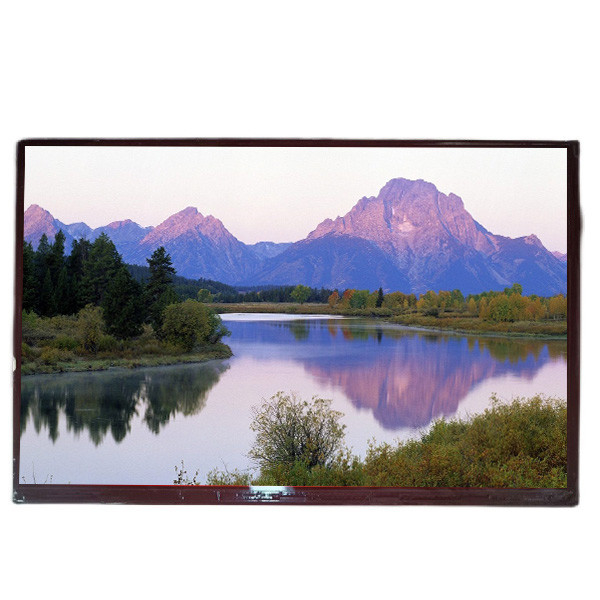

LCD panel 10.1 inch B101UAN01.1 lcd display module screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101UAN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101UAN01.1 (AUO11D8) | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200 (WUXGA) 224PPI | Display Area: | 216.81 × 135.5 (H×V) |
| Outline Dim.: | 228.6 × 149.2 × 4.65 (H×V×D) | Bezel Area: | 221.11 × 139.3 (H×V) |
| Mass: | 160g (Max.) | Used For: | Pad & Tablet |
Product Description
LCD panel 10.1 inch B101UAN01.1 lcd display module screen
Product details :
| AUO LCD SCREEN B101UAN01.1 (AUO11D8) | |
| manufacturer | AUO |
| Model Name | B101UAN01.1 (AUO11D8) |
| screen size | 10.1 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1920(RGB)×1200 (WUXGA) 224PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 216.81(Horizontal)×135.5(Vertical) mm |
| physical | 228.6(horizontal)×149.2(vertical) ×4.65(thick) mm |
| Visual size | 221.11(Horizontal)×139.3(Vertical) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Best angle | Symmetry |
| Optical mode | AHVA, Normally Black, Transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 160g (Max.) |
| Backlight type | 5 strings WLED , 10K hours , With LED Driver |
| Screen weight | 160g (Max.) |
| Apply to | Pad & Tablet |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | 40 pins LVDS (2 ch, 6-bit), connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: -20 ~ 60 °C; Storage temperature: -30 ~ 70 °C |
| LCD panel 10.1 inch B101UAN01.1 lcd display module screen | |
Special reminder:
1. Each product in our store will be sold before it is shipped, and it will be shipped after testing to determine that the product is 100% normal.
2. We will ship within 72 hours after the order is paid. If the product purchased by the customer is out of stock or the corresponding color of the purchased product is out of stock, we will notify the customer as soon as possible.
3. After receiving the product, please take a photo of the packaging first, and then take a photo of the whole unpacking process. If the product is damaged, please do not file a claim. Please contact us, we will replace or refund according to the actual situation.
4. We are not responsible for any loss caused by improper operation during the maintenance and replacement of the screen.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can you tested the B101UAN01.1 (AUO11D8) before shipping ?
A: Of course , our lcd panel B101EAN01.8 was Strictly tested before shipping.
Q: How to order AUO B101UAN01.1 (AUO11D8) ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd B101UAN01.1 (AUO11D8) ?
A: 90 days .
Q: What happen if the lcd panel B101UAN01.1 (AUO11D8) I received can't work ?
A: AUO B101UAN01.1 (AUO11D8) was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
