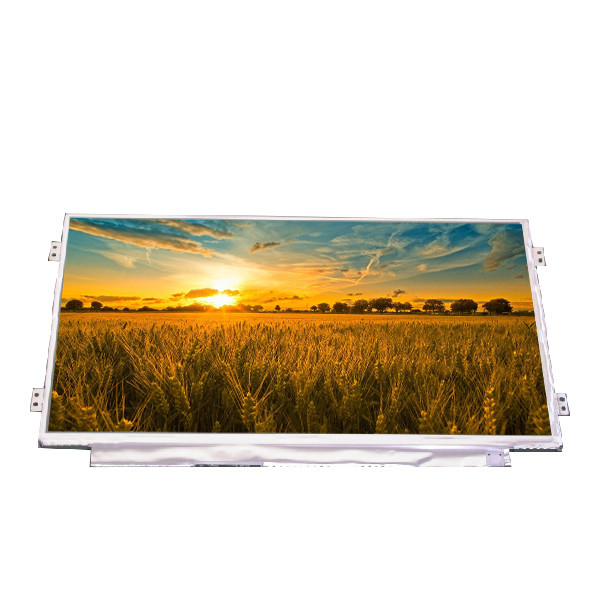

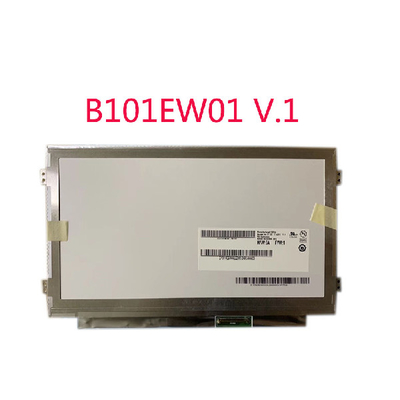

B101EW01 V1 10.1 inch for Lenovo LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101EW01 V1 | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA, 145PPI | Display Area: | 222.72(W)×125.28(H) Mm |
| Outline Size: | 243(W)×146.5(H) ×3.6(D) Mm | Luminance: | 180 Cd/m² (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description
B101EW01 V1 10.1 inch for Lenovo LCD Display Screen
Product details :
| manufacturer | AUO |
| Model Name | B101EW01 V1 |
| screen size | 10.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×720, WXGA, 145PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 222.72(W)×125.28(H) mm |
| physical | 243 × 146.5 × 3.6 mm (H×V×D) |
| Surface | Matte |
| Brightness | 180 (Typ.) |
| Contrast | 500: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding | 12/4 (Typ.)(Tr/Td) ms |
| Number of | 262K, 45% NTSC |
| Backlight type | WLED, 12K hours, with LED driver |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6-bit), connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| B101EW01 V1 10.1 inch for Lenovo LCD Display Screen | |
