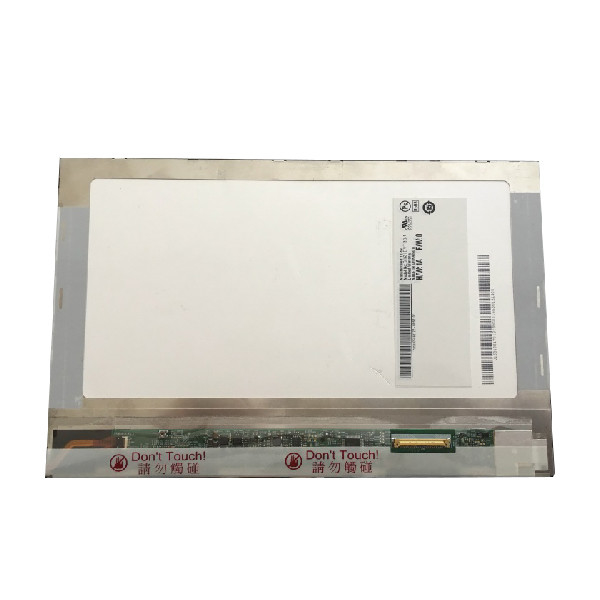

B101EVT03.0 TFT LCD Touch Panel Display 300 cd/m²
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EVT03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101EVT03.0 | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Display Area: | 216.96(W)×135.6(H) Mm |
| Outline Size: | 253.15(W)×167.75(H) ×6.7(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Touch Screen: | PCAP |
| High Light: | B101EVT03.0 TFT LCD Touch Panel Display,10.1 inch TFT LCD Touch Panel Display,300 cd/m² TFT LCD Touch Panel Display |
||
Product Description
Lcd Monitors B101EVT03.0 TFT LCD Touch Panel Display
Product details :
| AUO LCD SCREEN B101EVT03.0 | |
| Panel Brand | AUO |
| Panel Model | B101EVT03.0 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , Assembly |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size | 253.15(W)×167.75(H)×6.7(D) mm |
| Surface | Hard coating (3H), reflectivity 1.5% (Max.) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | PCAP |
| Application | Pad & Tablet |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Lcd Monitors B101EVT03.0 TFT LCD Touch Panel Display | |
Guarantee:
All products pass rigorous testing before shipping. All photos shown are 100% real and for reference only. Please allow slight differences due to technical improvements and changes. Your order is approved with full confirmation of product specifications and corresponding policies. Our customer service is always ready to help you. Aiming to create a pleasant shopping experience for you, we are committed to delivering top quality and excellent service on time.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can you tested the B101EVT03.0 before shipping ?
A: Of course , our lcd panel B101EVT03.0 was Strictly tested before shipping.
Q: How to order AUO B101EVT03.0 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel B101EVT03.0 I received can't work ?
A: AUO B101EVT03.0 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
