• 10.1 inch B101EAN01.0 1280x800 TFT Lcd Screen Display Touch Digitizer

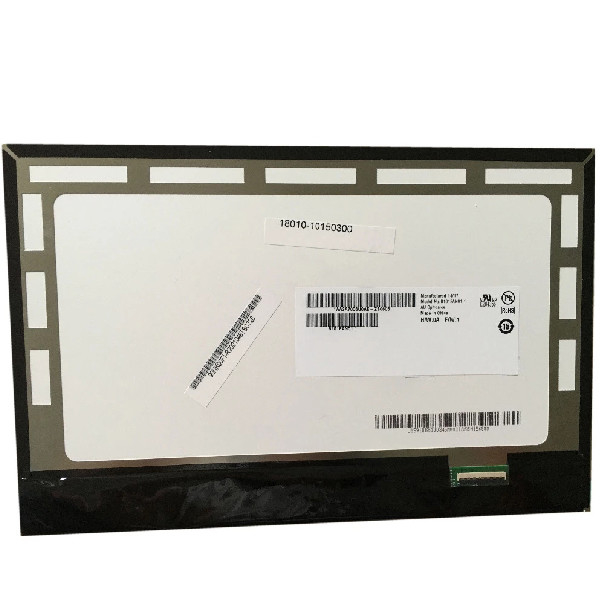

10.1 inch B101EAN01.0 1280x800 TFT Lcd Screen Display Touch Digitizer

10.1 inch B101EAN01.0 1280x800 TFT Lcd Screen Display Touch Digitizer

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: B101EAN01.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: B101EAN01.0 Screen Size: 10.1 Inch
Resolution: 1280(RGB)×800 (WXGA) 149PPI Display Area: 216.96 × 135.6 (H×V)
Outline Size: 228.21 × 148.86 × 4.6 (H×V×D) Luminance: 450 Cd/m² (Typ.)
Mass: 145g (Max.) Application: Pad & Tablet

Product Description

10.1 inch B101EAN01.0 1280x800 TFT Lcd Screen Display Touch Digitizer





Product details :

AUO LCD SCREEN B101EAN01.0
manufacturer AUO
Model Name B101EAN01.0
screen size 10.1 inch
Screen type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×800 (WXGA) 149PPI
Pixel configuration RGB Vertical Stripe
Display size 216.96 × 135.6 (H×V)
physical dimension 228.21 × 148.86 × 4.6 (H×V×D)
surface treatment Hard coating, Antireflection
Brightness 450 cd/m² (Typ.)
Contrast 900 : 1 (Typ.) (TM)
Best angle Symmetry
Optical mode AHVA, Normally Black, Transmissive
Viewing angle 80/80/80/80 (Typ.)(CR≥10)
Responding time 30 (Typ.)(Tr+Td) ms
Number of color 16.7M 50% NTSC
Backlight type 4 strings WLED , 15K hours , No Driver
Panel weight 145g (Max.)
Apply to Pad & Tablet
Refresh rate 60Hz
Touch function No touch
signal system LVDS (1 ch, 8-bit) , 45 pins Connector
Supply voltage 3.3V (Typ.)
Maximum rating Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
10.1 inch B101EAN01.0 1280x800 TFT Lcd Screen Display Touch Digitizer
