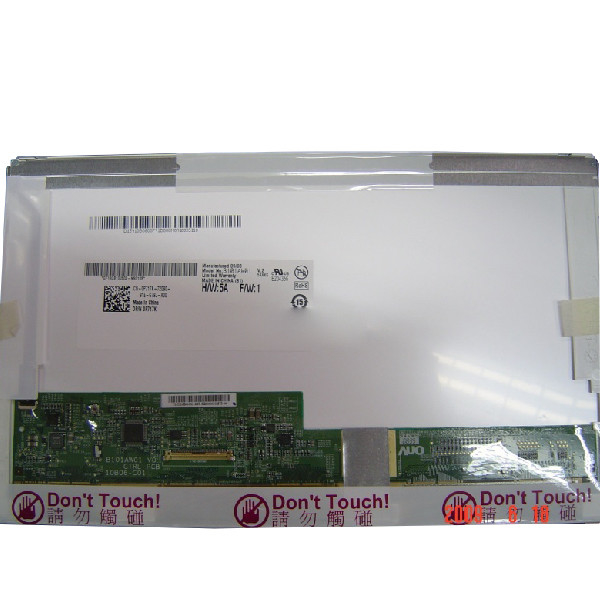

10.1 inch B101AW01 V0 HW0A TFT LCD Panel Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101AW01 V0 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101AW01 V0 HW0A | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×576, WSVGA, 116PPI | Display Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 224.72(W)×127.28(H) Mm | Outline Size: | 235(W)×143.5(H) ×5.2(D) Mm |
| Shape Style: | Wedge (PCBA Bent, T≥5.2mm) | Application: | Netbook PC |
Product Description
10.1 inch B101AW01 V0 HW0A TFT LCD Panel Screen Display
Product details :
| AUO LCD SCREEN B101AW01 V0 HW0A | |
| manufacturer | AUO |
| Model Name | B101AW01 V0 HW0A |
| screen size | 10.1 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×576, WSVGA, 116PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 222.72(W)×125.28(H) mm |
| physical dimension | 235(W)×143.5(H) ×5.2(D) mm |
| Visual size | 224.72(W)×127.28(H) mm |
| surface treatment | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Responding time | 8 (Typ.)(Tr+Td) |
| Number of color | 262K 45% NTSC |
| Backlight type | WLED , 10K hours , With LED Driver |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 10.1 inch B101AW01 V0 HW0A TFT LCD Panel Screen Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Delivery time:
DHL, UPS, Fedex, EMS express usually takes 3-10 working days, China Post Air Mail/Hong Kong Post Air Mail shipping usually takes 7-35 days, depending on the country/region of delivery. In rare cases, strict customs clearance will result in slightly longer delivery time, please be patient.
1. Any accidents, delays or other problems are the responsibility of the shipping service.
2. Any import charges or charges are the responsibility of the buyer.
3. Please check your address carefully when processing the order.
4. If you have any questions, please feel free to contact us, we will provide you with a satisfactory answer.
FAQ:
Q: How long will I receive my goods of B101AW01 V0 HW0A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for B101AW01 V0 HW0A ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of B101AW01 V0 HW0A at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my goods B101AW01 V0 HW0A by credit card ?
A: Yes!you can use your credit card through your Paypal account.
