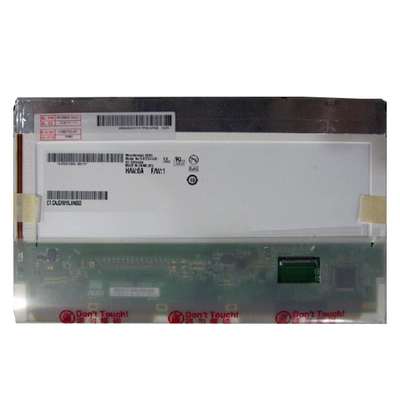

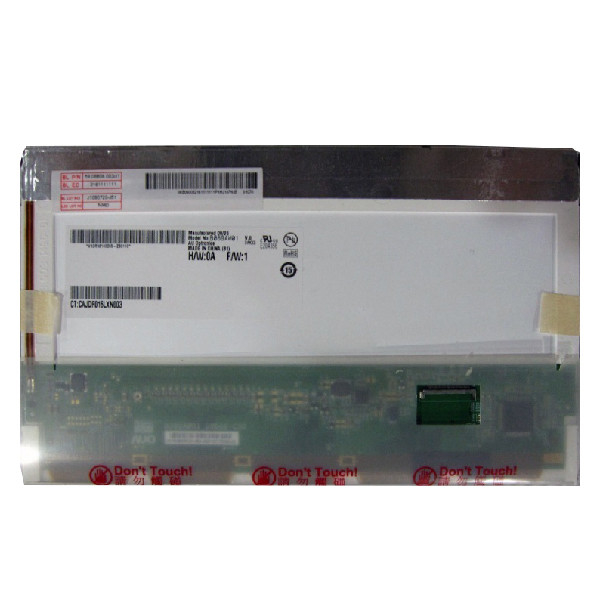

AUO 8.9 inch 1024×600 B089AW01 V0 LCD laptop screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B089AW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B089AW01 V0 | Screen Size: | 8.9 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA, 133PPI | Display Area: | 195.072(W)×113.4(H) Mm |
| Bezel Opening: | 198.27(W)×116.6(H) Mm | Outline Size: | 213.4(W)×129.6(H) ×5.45(D) Mm |
| Display Colors: | 262K 51% NTSC | Application: | Netbook PC |
Product Description
AUO 8.9 inch 1024×600 B089AW01 V0 LCD laptop screen
Product details :
| AUO LCD SCREEN B089AW01 V0 | |
| manufacturer | AUO |
| Model Name | B089AW01 V0 |
| screen size | 8.9 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)×600, WSVGA, 133PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 195.072(Horizontal)×113.4(Vertical) mm |
| physical | 213.4(Horizontal)×129.6(Vertical) ×5.45(Thick) mm |
| Visual size | 198.27(Horizontal)×116.6(Vertical) mm |
| Surface | Antiglare |
| Brightness | 180 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding | 12/18 (Typ.)(Tr/Td) ms |
| Number of | 262K, 51% NTSC |
| Backlight type | WLED [3S8P], 10K hours, with LED driver |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | 40 pins LVDS (1 ch, 6-bit), connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 65 °C |
| AUO 8.9 inch 1024×600 B089AW01 V0 LCD laptop screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
1. Items will not be shipped until payment is received.
2. DHL UPS Fedex or EMS can be used for shipping.
3. Free shipping for special items of China Post Air Mail/Hong Kong Post Air Mail. When you choose the shipping method, please ask our salesman to revise the total cost of the special product.
FAQ:
Q: Can you give me a discount if I need a large quantity of B089AW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of B089AW01 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of B089AW01 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of B089AW01 V0 ?
A: Of course!sample order is welcome !
