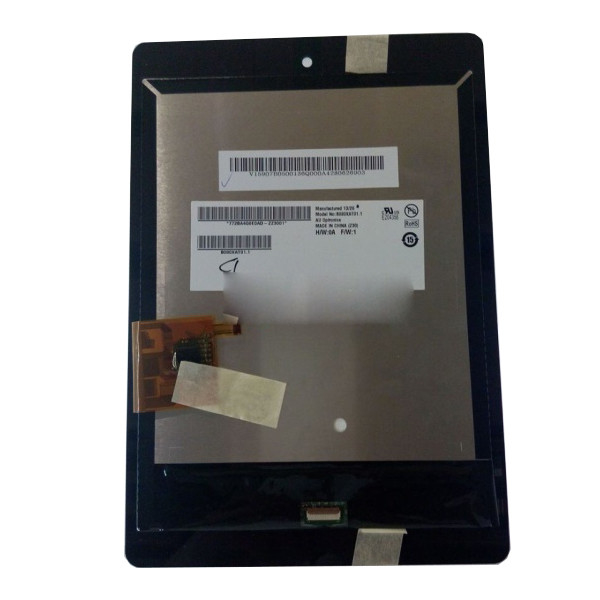

New LCD Panel Displays B080XAT01.1 7.9 inch tablet LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080XAT01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B080XAT01.1 | Screen Size: | 7.9 Inch |
|---|---|---|---|
| Resolution: | 768(RGB)×1024 [XGA] 162PPI | Display Area: | 119.808(H)×159.744(V) Mm |
| Outline Size: | 142(H)×205(V) ×6.1(D) Mm | Luminance: | 230 Cd/m² (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Application: | Pad & Tablet |
Product Description
New LCD Panel Displays B080XAT01.1 7.9 inch tablet LCD screen
Product details :
| AUO LCD SCREEN B080XAT01.1 | |
| manufacturer | AUO |
| Model Name | B080XAT01.1 |
| screen size | 7.9 inches |
| Screen type | a-Si TFT-LCD, Assembly |
| Resolution | 768(RGB)×1024, XGA, 162PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 119.808(H)×159.744(V) mm |
| physical | 142 × 205 × 6.1 mm (H×V×D) |
| Brightness | 230 (Typ.) |
| Contrast | 500: 1 (Typ.) [Transmission] |
| Best angle | Symmetry |
| Optical mode | AHVA, Normally Black, Transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| responding | 25 (Typ.)(Tr+Td) |
| Number of | 262K, 50% NTSC |
| Backlight type | WLED [4S5P] , 10K hours , W/O Driver |
| Screen weight | 150g (Max.) |
| Apply to | Pad & Tablet |
| Refresh rate | 60Hz |
| Touch function | PCAP |
| signal system | MIPI (4 data lanes), connector, 35 pins |
| Supply voltage | 3.7V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| New LCD Panel Displays B080XAT01.1 7.9 inch tablet LCD screen | |
Serve:
After receiving the goods, if you have any questions (including usage and technical issues), please contact us and we will reply to the email within 24 hours.
You can always drop us a message or send us an email, if you can help us, we are always ready to help you. Before placing an order, you'd better contact us,
We can help you make sure the product is right for you!
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can you test the lcd panel B080XAT01.1 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order B080XAT01.1 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order B080XAT01.1 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd B080XAT01.1 ?
A: 90 days .
