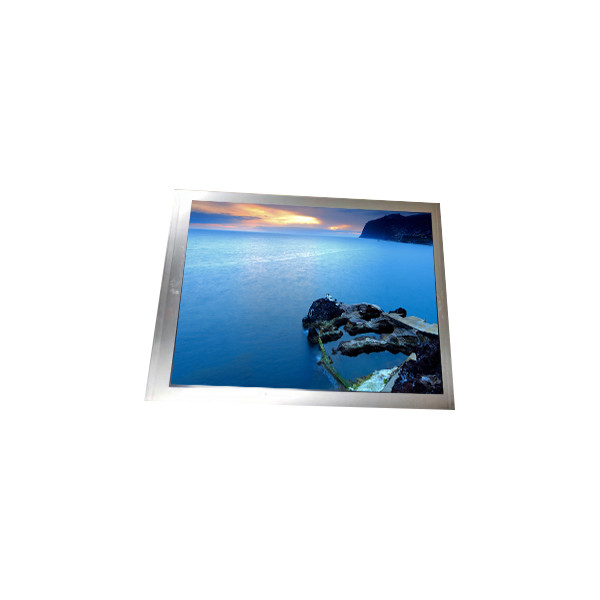

10.1 inch 1920*1080 LCD modules COG-VLSZT115-01 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | COG-VLSZT115-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | COG-VLSZT115-01 | Screen Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 218PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 223.488(W)×125.712(H) Mm |
| Outline Dim.: | 237.69(W)×142.7(H) ×11.7(D) Mm | Luminance: | 1100 Cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Designed For: | Rugged Industry ，Outdoor High Brightness， Automotive Display |
Product Description
10.1 inch 1920*1080 LCD modules COG-VLSZT115-01 lcd screen
Product details :
| Brand | BOE |
| Model P/N | COG-VLSZT115-01 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 218PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 223.488(W)×125.712(H) mm |
| Bezel Opening | - |
| Outline Dim. | 237.69(W)×142.7(H) ×11.7(D) mm |
| Treatment | Hard coating |
| Luminance | 1100 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/30/30 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 85% NTSC |
| Light Source | 8S4P WLED , 30K hours , Without Driver |
| Weight | - |
| Designed For | Rugged Industry ,Outdoor High Brightness, Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 10.0G (98 m/s²) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
transportation:
After your payment, we will prepare and send your goods within 1-5 days.
Most regions take 7-14 business days (2-3 weeks) to receive.
DHL spends about 3-7 days a week;
FEdex took about 1 week;
EMS took about 2-3 weeks;
Hong Kong China Post airmail takes about 2-3 weeks;
China Post airmail takes about 3 weeks;
FAQ:
Q: How to make payment of COG-VLSZT115-01 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of COG-VLSZT115-01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of COG-VLSZT115-01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
