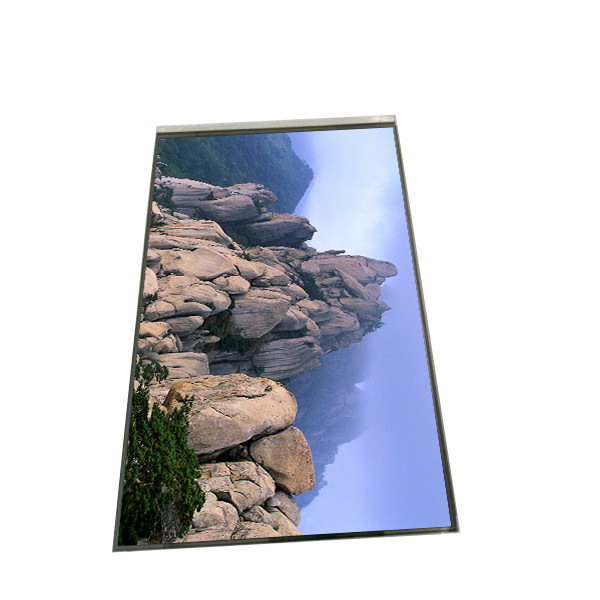

LCD display B080EAN01.0 8.0 inch 800(RGB)×1280 TFT lcd
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080EAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B080EAN01.0 | Screen Size: | 8.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×1280 [WXGA] 188PPI | Display Area: | 107.64(H)×172.224(V) Mm |
| Outline Size: | 114.6(H)×184.1(V) ×3.65(D) Mm | Panel Weight: | 110g (Max.) |
| Application: | Pad & Tablet | Response Time: | 30 (Typ.)(Tr+Td) |
Product Description
LCD display B080EAN01.0 8.0 inch 800(RGB)×1280 TFT lcd
Product details :
| AUO LCD SCREEN B080EAN01.0 | |
| Panel Brand | AUO |
| Panel Model | B080EAN01.0 |
| Panel Size | 8.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×1280 [WXGA] 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 107.64 × 172.224 mm (H×V) |
| Outline Size | 114.6 × 184.1 × 3.65 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 400 (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M , 58% NTSC |
| Lamp Type | WLED , 15K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 110g (Max.) |
| Designed For | Pad & Tablet |
| Signal Interface | MIPI (4 data lanes) , terminal, 34 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LCD display B080EAN01.0 8.0 inch 800(RGB)×1280 TFT lcd | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Return the goods:
All returns must be notified prior to return.
The buyer must notify the seller of all returned items within 7 days of receipt of the package. We reserve the right to deny any request with more than 7 days notice to the seller.
Buyer should pay 2-way shipping for exchange due to buyer's wrong ordering of parts.
Returned items must be in all original packaging and undamaged.
Return and insurance fees are non-refundable for refunds or reshipments.
Shipping charges are non-refundable.
FAQ:
Q: Can you give me a discount if I need a large quantity of B080EAN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of B080EAN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of B080EAN01.0 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
