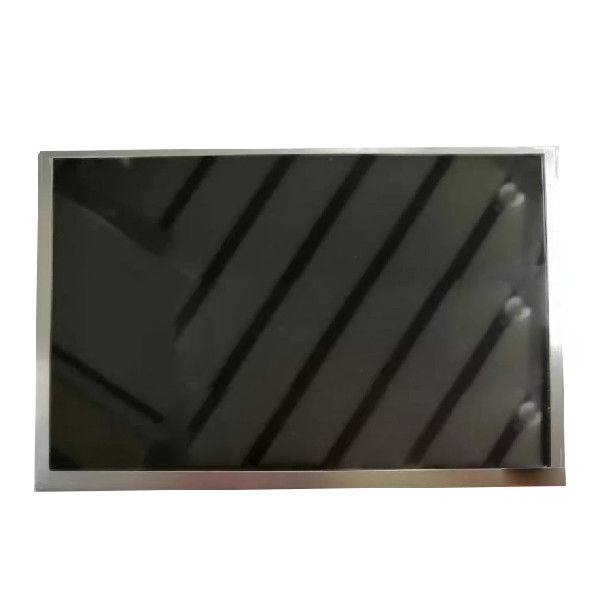

LCD PANEL SCREEN 7 inch 1280(RGB)×800 B070EW01 V0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B070EW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B070EW01 V0 | Screen Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 215PPI | Display Area: | 150.72 × 94.2 (H×V) |
| Outline Size: | 164.2 × 106.75 × 5.1 (H×V×D) | Luminance: | 400 Cd/m² (Typ.) |
| Weight: | 90.0g (Max.) | Application: | Pad & Tablet / MID UMPC |
Product Description
LCD PANEL SCREEN 7 inch 1280(RGB)×800 B070EW01 V0
Product details :
| AUO LCD SCREEN B070EW01 V0 | |
| manufacturer | AUO |
| Model Name | B070EW01 V0 |
| screen size | 7.0" |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1280(RGB)×800, WXGA, 215PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 150.72(W)×94.2(H) mm |
| physical | 164.2(W)×106.75(H) ×5.1(D) mm |
| Surface | Mirror (Haze 0%), Hard coating (3H) |
| Brightness | 400 (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Optical mode | AMVA, Normally Black, Transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 262K, 50% NTSC |
| Backlight type | 7S3P WLED, 15K hours, no driver |
| Screen weight | 90.0g (Max.) |
| Apply to | Pad & Tablet / MID UMPC |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6-bit), 40 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
| LCD PANEL SCREEN 7 inch 1280(RGB)×800 B070EW01 V0 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Mail:
When placing an order, please select a shipping method and pay for the order, including shipping. Once your payment is made, we will ship the item within 3 days.
Due to different customs clearance times in various countries, we do not guarantee delivery times for any international shipments, which may affect the speed at which your products are inspected.
FAQ:
Q: Can you give me a discount if I need a large quantity of B070EW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B070EW01 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B070EW01 V0 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of B070EW01 V0 ?
A: Of course!sample order is welcome !
