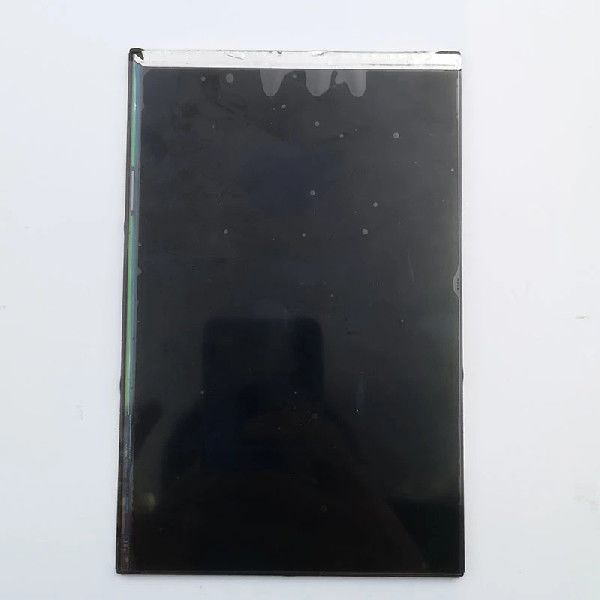

new and original LCD Screen Display Panel B070EAN01.4
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B070EAN01.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B070EAN01.4 | Screen Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×1280 [WXGA] 215PPI | Display Area: | 94.2(H)×150.72(V) Mm |
| Outline Size: | 104.32(H)×161.67(V) ×4.59(D) Mm | Luminance: | 350 Cd/m² (Typ.) |
| Weight: | 105g (Max.) | Application: | Pad & Tablet |
Product Description
new and original LCD Screen Display Panel B070EAN01.4
Product details :
| AUO LCD SCREEN B070EAN01.4 | |
| Panel Brand | AUO |
| Panel Model | B070EAN01.4 |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×1280 [WXGA] 215PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 94.2 × 150.72 mm (H×V) |
| Outline Size | 104.32 × 161.67 × 4.59 mm (H×V×D) |
| Surface | matte |
| Brightness | 350 (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M , 60% NTSC |
| Lamp Type | 4S5P WLED , no driver |
| Designed For | Pad & Tablet |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 105g (Max.) |
| Signal Interface | MIPI (4 data lanes) , terminal, 31 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 70 °C Operating temperature: -20 ~ 60 °C |
| new and original LCD Screen Display Panel B070EAN01.4 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Warranty and Returns:
Thank you for your strong support and trust in our products, we have very strict requirements
Quality control system, so we have extremely low defect rate.
However, if you would like to return a return, please follow the instructions below:
1 As a responsible seller, we will try our best to solve every problem.
2 International shipping sometimes causes product damage or product failure; if you have such a problem, please don't argue, resolve it through our email or phone; we'll always be by your side!
I will help you solve the problem as soon as possible.
3 We offer a 30-day money-back or exchange guarantee on all products.
FAQ:
Q: Can I pay my order of B070EAN01.4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity ofB070EAN01.4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of B070EAN01.4 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of B070EAN01.4 ?
A: Of course!sample order is welcome !
