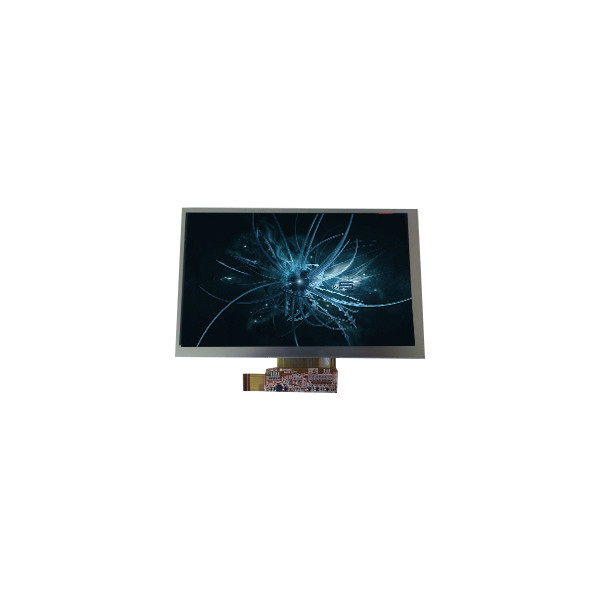

Original TM070RDH28 7.0 inch TFT LCD Screen Panel

All Category

Floor Standing Digital Signage

Original TM070RDH28 7.0 inch TFT LCD Screen Panel

Brand Name:	TIANMA
Model Number:	TM070RDH28
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070RDH28

Screen Size:

Resolution:

800(RGB)×480, WVGA 134PPI

Active Area:

154.08(W)×85.92(H) Mm

Outline Size:

164.9(W)×100(H)×5.6(D) Mm

Brightness:

450 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Application:

Automotive Display

Lamp Type:

3S8P WLED , 20K Hours , Without Driver

Signal Interface:

Parallel RGB (1 Ch, 8-bit), 50 PinsFPC

Supply Ability:

100000 Unit/Units per Month

Product Description

Original TM070RDH28 7.0 inch TFT LCD Screen Panel

Product details :

Brand	TIANMA
Model P/N	TM070RDH28
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	-
Outline Size	164.9(W)×100(H)×5.6(D) mm
Brightness	450 cd/m² (Typ.)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Best View on	12 o'clock
Display Colors	16.7M 50%NTSC
Frequency	60Hz
Weight	150g (Typ.)
Surface	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	3S8P WLED , 20K hours , Without Driver
Touch Screen	Without
Application	Automotive Display
Signal Interface	Parallel RGB (1 ch, 8-bit), 50 pinsFPC
Input Voltage	3.3/10.4/-16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Original TM070RDH28 7.0 inch TFT LCD Screen Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Notice:

1. Each screen is tested and 100% working properly before leaving the factory; repair/replace old, broken, cracked, damaged and faulty touch screens.

2. Please leave your accurate full name (especially for Russian buyers) and contact number when filling in the buyer's information, so that the courier can deliver your items in a timely and convenient manner.

3. After receiving the package, please take a video when you open the package. (In the event of damage in transit, you can use this video as proof of dispute.)

4. For orders of multiple items, please do not submit payment until you have earned all the items you want to combine.

5 Note: When you receive the package, please make a video when you open the package.

The above and the following regulations will take effect once an order is placed! (Important to you, please read before bidding.)

FAQ:

Q: How do you ship my goods TM070RDH28 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of TM070RDH28 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel TM070RDH28 at a very low value ?

A: Yes , we can . pls inform us before shipping .
