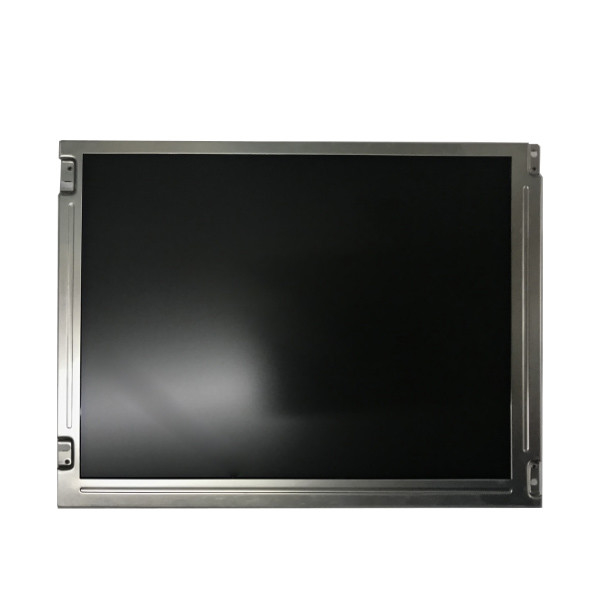

Original 10.4 inch 800×600 A104SN01 V0 TFT LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A104SN01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A104SN01 V0 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.6(W)×162.7(H) Mm | Outline Size: | 243(W)×184(H) Mm |
| Panel Weight: | 680g (Typ.) | Application: | Digital Photo Frame / Portable DVD Player |
Product Description
Original 10.4 inch 800×600 A104SN01 V0 TFT LCD Screen Panel
Product details :
A104SN01 V0 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×184(H) mm, viewing area size of 215.6(W)×162.7(H) mm, net weight of 680g (Typ.). As a TN, Normally White, Transmissive LCM product, A104SN01 V0 can provides 450 cd/m² display brightness 350:1 transimissive contrast ratio, 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm and have a working life time of 10K hours, With Inverter. A104SN01 V0 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 42 pins with power supply voltage of 3.3V (Typ.).
| AUO LCD SCREEN A102VW01 V0 | |
| manufacturer | AUO |
| Model Name | A102VW01 V0 |
| screen size | 10.2 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480, WVGA, 91PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 222(W)×133.2(H) mm |
| Brightness | 400 cd/m² (Typ.) |
| Optical mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Backlight type | 1 pcs CCFL |
| Apply to | Digital Photo Frame / Portable DVD Player |
| Signal Interface | Parallel RGB (1 ch, 6-bit) |
| A102VW01 V0 LCD 10.2 inch tft screen 800*480 lcd panels lcd module | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
All items will be dispatched within 48 working hours of receipt of payment (except Saturdays, Sundays and public holidays).
7-15 business days to the US, shipped by USPS with a tracking number.
14-22 working days to UK, Australia, Canada.
18-25 working days to Greece, Spain, Poland, Norway.
18-25 working days to Germany, Philippines. Sweden and Malta.
20-25 working days to France and Czech Republic. Most of Europe.
30-40 working days to other countries (Brazil and Russia).
This is usually around shipping time. If your country has strict customs, it will cause delays.
We are not responsible for customs delays or taxes. Import duties are not included in the item price or shipping costs.
FAQ:
Q: Can you give me a discount if I need a large quantity of A104SN01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of A104SN01 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of A104SN01 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of A104SN01 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
