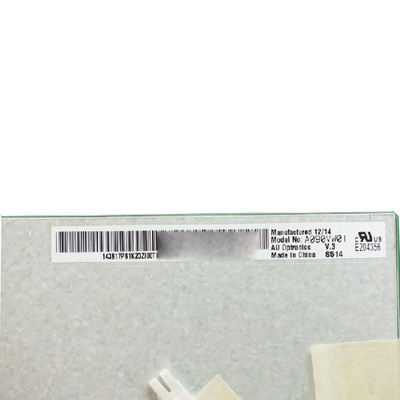

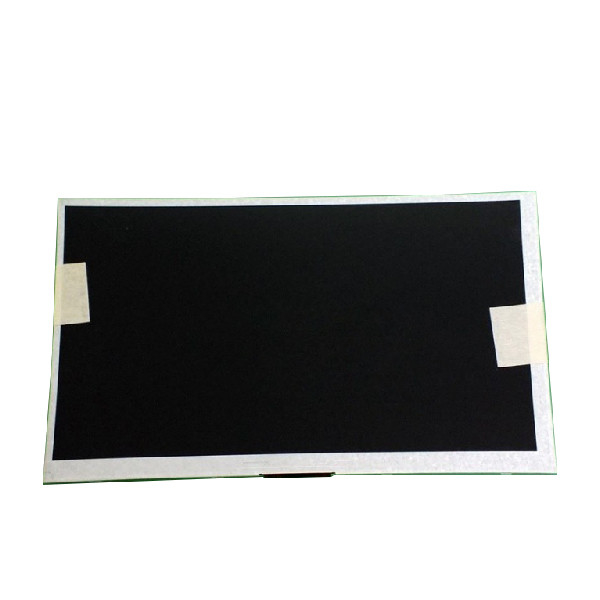

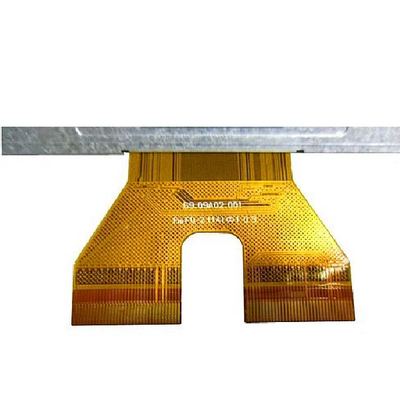

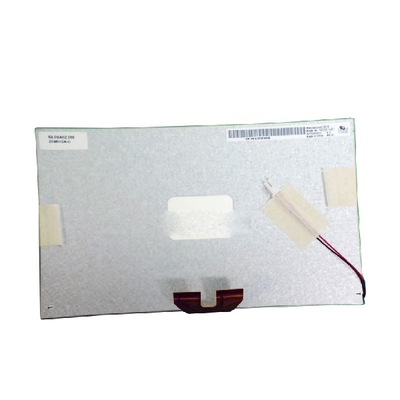

LCD PANEL SCREEN 9 inch 800*480 A090VW01 V3
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A090VW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A090VW01 V3 | Screen Size: | 9.0 Inch |
|---|---|---|---|
| Resolution: | 800×480(RGB), WVGA, 104PPI | Display Area: | 199.2(W)×110.16(H) Mm |
| Outline Size: | 211.7(W)×125(H) Mm | Bezel Opening: | 201.2(W)×112.16(H) Mm |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
LCD PANEL SCREEN 9 inch 800*480 A090VW01 V3
Product details :
Thanks for visiting my store
All parts are as shown in the photo, with 90 days warranty,
If you have any questions or need any discount,
Please feel free to contact me and I will try my best to serve you.
Please make sure the product you need must be exactly as shown in my photo.
| AUO LCD SCREEN A090VW01 V3 | |
| manufacturer | AUO |
| Model Name | A090VW01 V3 |
| screen size | 8.9inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800×480(RGB) WVGA 104PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display size | 199.2(W)×110.16(H) mm |
| Outline Size | 211.7(W)×125(H) mm |
| Visual size | 201.2(W)×112.16(H) mm |
| Surface | Matte Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 70/70/55/70 (Typ.)(CR≥10) |
| responding | 4/12 (Typ.)(Tr/Td) ms |
| Number of | 16.7M, 46% NTSC |
| Backlight type | 3S8P WLED , 10K hours , Without Driver |
| Screen weight | 220g (Typ.) |
| Apply to | Industrial / Digital Photo Frame / Portable DVD Player |
| Refresh rate | 60Hz |
| Touch function | Without |
| signal system | TTL (1 ch, 8-bit) + SPI, FPC |
| Supply voltage | 3.3/5.5/-5.5/10/-13V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) |
| Maximum | Working temperature: -10 ~ 60 °C; Storage temperature: -20 ~ 70 °C |
| LCD PANEL SCREEN 9 inch 800*480 A090VW01 V3 | |
