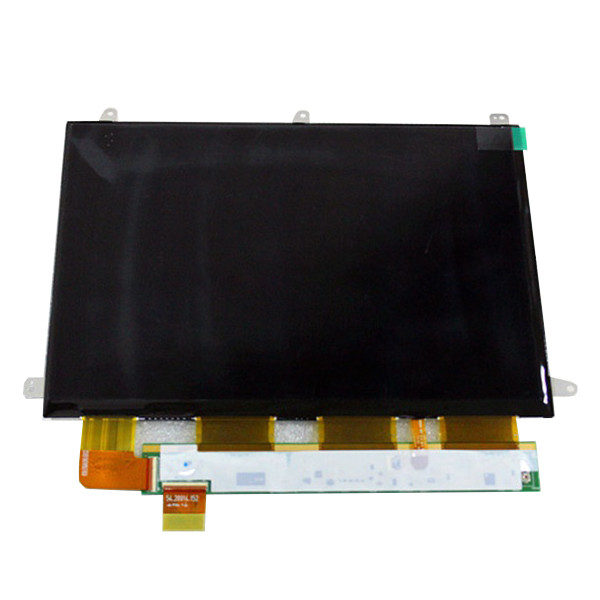

AUO TFT LCD Display A090FW01 V0 LCD Screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | A090FW01 V0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | A090FW01 V0 | Screen Size: | 9.0 Inch |
---|---|---|---|
Pixel Format: | 640(RGB)×234 76PPI | Active Area: | 198.24 × 111.735 (H×V) |
Outline Dim.: | 210.7 × 126.4 (H×V×D) | Bezel Opening: | 201.44 × 114.94 (H×V) |
Mass: | 275±10g | Application: | Digital Photo Frame / Portable DVD Player |
Product Description
AUO TFT LCD Display A090FW01 V0 LCD Screen
Product details :
AUO LCD SCREEN A090FW01 V0 | |
manufacturer | AUO |
Model Name | A090FW01 V0 |
screen size | 9.0 inch |
Screen type | a-Si TFT-LCD , LCM |
Resolution | 640(RGB)×234 76PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 198.24 × 111.735 (H×V) |
physical dimension | 210.7 × 126.4 (H×V×D) |
Visual size | 201.44 × 114.94 (H×V) |
surface treatment | Antiglare |
Brightness | 250 (Typ.)(cd/m²) |
Contrast | 400 : 1 (Typ.) (TM) |
Optical mode | TN, Normally White, Transmissive |
Viewing angle | 65/65/50/65 (Typ.)(CR≥10) |
Responding time | 12/18 (Typ.)(Tr/Td) ms |
Backlight type | 1 pcs CCFL , 10K hours |
Panel weight | 275±10g |
Apply to | Digital Photo Frame / Portable DVD Player |
Touch function | No touch |
signal system | TFT Specific Analog RGB , 26 pins FPC |
Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
Maximum rating | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
AUO TFT LCD Display A090FW01 V0 LCD Screen |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
transportation:
All returns must be notified prior to return.
The buyer must notify the seller of all returned items within 7 days of receipt of the package. We reserve the right to deny any request with more than 7 days notice to the seller.
For exchanges that occur due to the buyer ordering the wrong part, the buyer shall pay for two-way shipping.
Returned items must be in all original packaging and undamaged.
Return and insurance fees are non-refundable for refunds or reshipments.
Shipping charges are non-refundable.
If you have any questions, please contact me first and I will try to solve it for you.
FAQ:
Q: Can you give me a discount if I need a large quantity of A090FW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of A090FW01 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods A090FW01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of A090FW01 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
