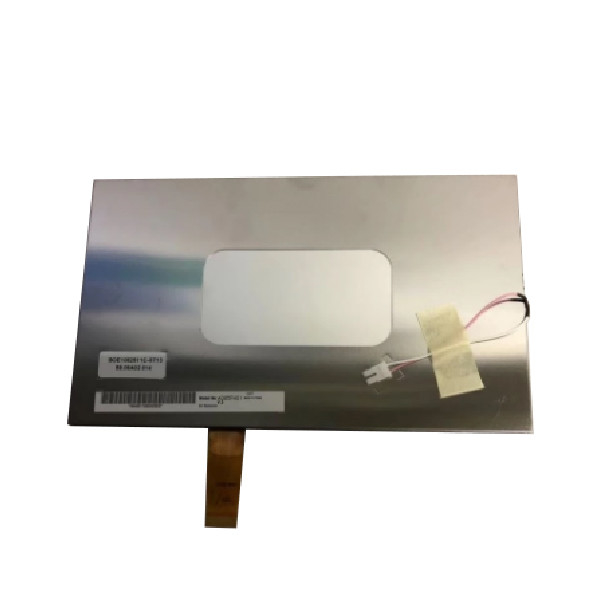

Original 8.5 inch 480(RGB)×234 A085FW01 V0 LCD Panel
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | A085FW01 V0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | A085FW01 V0 | Screen Size: | 8.5 Inch |
---|---|---|---|
Pixel Format: | 480(RGB)×234 63PPI | Active Area: | 187.2 × 105.3 (H×V) |
Outline Dim.: | 199 × 119 (H×V×D) | Backlight: | 1 Pcs CCFL , 15K Hours , No Driver |
Mass: | 235±10g | Application: | Automotive Display / Digital Photo Frame / Portable DVD Player |
Product Description
Original 8.5 inch 480(RGB)×234 A085FW01 V0 LCD Panel
Product details :
AUO LCD SCREEN A085FW01 V0 | |
manufacturer | AUO |
Model Name | A085FW01 V0 |
screen size | 8.1 inches |
Screen type | a-Si TFT-LCD, LCD module |
Resolution | 480(RGB)×234, 63PPI |
Pixel | RGB Vertical Stripe |
Display size | 187.2 × 105.3 (H×V) |
Outline(mm) | 199(W)×119(H) mm |
Surface | Antiglare |
Brightness | 500 cd/m² (Typ.) |
Contrast | 300:1 (Typ.) (TM) |
Best angle | 6 o'clock |
Optical mode | TN, normally white display, transmissive |
Viewing angle | 65/65/50/65 (Typ.)(CR≥10) |
responding | 12/18 (Typ.)(Tr/Td) |
Number of Color | 6 o'clock |
Backlight type | 1 pcs CCFL, 15K hours, without driver |
Screen weight | 235±10g |
Apply to | Automotive Display / Digital Photo Frame / Portable DVD Player |
Touch function | Without |
signal system | TFT Specific Analog RGB, 26 pins, FPC |
Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
Maximum | Work: -30 ~ 75 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.9G (28.4 m/s²) |
Original 8.5 inch 480(RGB)×234 A085FW01 V0 LCD Panel |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
About transportation:
We will strictly test it before shipping.
We will ship within 1-3 business days after your payment. We only ship according to the delivery address, if you want to change the delivery address, please contact me in advance. As for the shipping time, it is usually 7-30 days, it varies from country to country.
FAQ:
Q: If I place order now,when will you ship the goods of A085FW01 V0?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of A085FW01 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods A085FW01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of A085FW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
