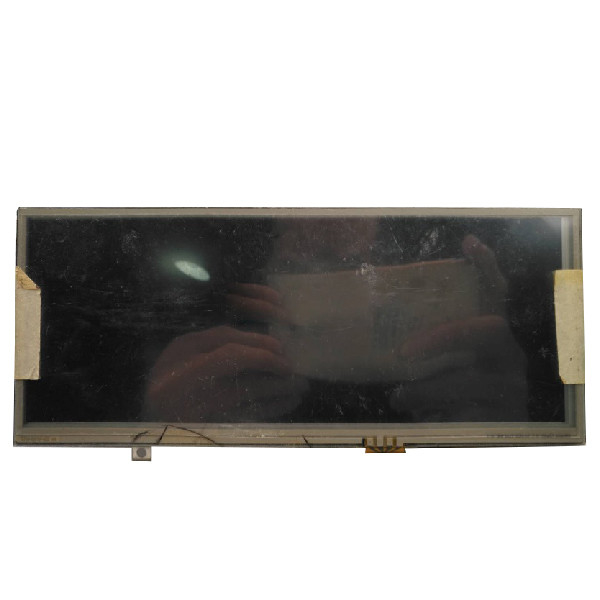

8.1 Inch Lcd Tft Display Panel Original For AUO A081VW01 V0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A081VW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A081VW01 V0 | Screen Size: | 8.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×300, HSVGA, 105PPI | Active Area: | 192(W)×72(H) Mm |
| Outline Dim.: | 204.6(W)×86.2(H) Mm | Bezel Opening: | 194.0(W)×74.0(H) Mm |
| Touch Screen: | 4-wire Resistive Touch | Application: | Gaming |
| High Light: | Lcd Tft Display Panel Original,8.1 Inch Lcd Tft Display Panel,AUO A081VW01 V0 Lcd Tft Display Panel |
||
Product Description
8.1 inch TFT LCD Display Original for AUO A081VW01 V0 LCD Screen
Product details :
| AUO LCD SCREEN A081VW01 V0 | |
| manufacturer | AUO |
| Model Name | A081VW01 V0 |
| screen size | 8.1 inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×300, HSVGA, 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 192(W)×72(H) mm |
| Outline Size | 204.6(W)×86.2(H) mm |
| Visual size | 194.0(W)×74.0(H) mm |
| Surface | Hard coating |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| responding | 10/20 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M |
| Backlight type | 4S1P WLED, 10K hours, no driver |
| Screen weight | TBD |
| Apply to | Gaming |
| Touch function | 4-wire resistive touch screen |
| signal system | TTL (1 ch, 6/8-bit) + SPI, 60 pins, FPC |
| Supply voltage | 3.3/11/3.3/15/-7V (Typ.)(VDD/AVDD/GVCC/VGH/VGL) |
| Maximum | Working temperature: 0 ~ 60 °C; Storage temperature: -25 ~ 80 °C |
| 8.1 inch TFT LCD Display Original for AUO A081VW01 V0 LCD Screen | |
