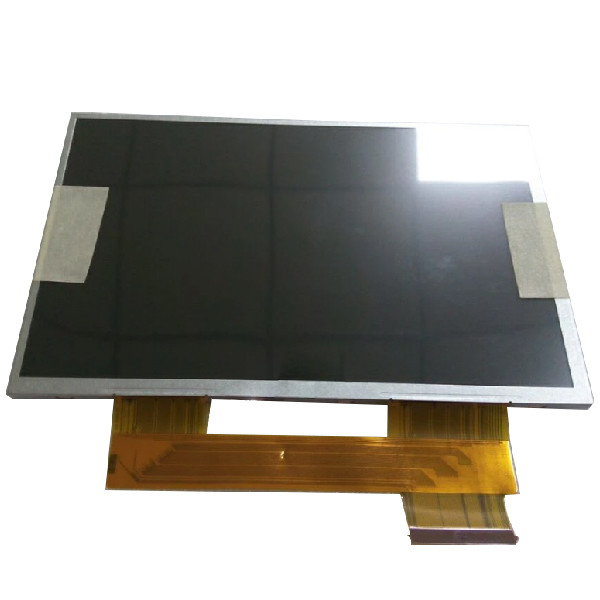

A080VTN01.0 8.0 inch LCD Display for Car GPS Navigation System
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080VTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A080VTN01.0 | Screen Size: | 8.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 (WVGA) 115PPI | Active Area: | 175.2 × 105.12 (H×V) |
| Outline Dim.: | 186.5 × 117.12 × 5.6 (H×V×D) | Bezel Opening: | 178.1 × 108.47 (H×V) |
| Panel Weight: | 180±18g | Application: | Automotive Display |
Product Description
A080VTN01.0 8.0 inch LCD Display for Car GPS Navigation System
Product details :
| AUO LCD SCREEN A080VTN01.0 | |
| manufacturer | AUO |
| Model Name | A080VTN01.0 |
| screen size | 8.0 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480 (WVGA) 115PPI |
| Outline(mm) | RGB Vertical Stripe |
| Display size | 175.2 × 105.12 (H×V) |
| physical | 186.5 × 117.12 × 5.6 (H×V×D) |
| Visual size | 178.1 × 108.47 (H×V) |
| Surface | Matte Hard coating (3H) |
| Brightness | 450 (Typ.) |
| Contrast | 600: 1 (Typ.) [Transmission] |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| responding | 15/20 (Typ.)(Tr/Td) ms |
| Color Depth | 262K 73% NTSC |
| Backlight type | 6S3P WLED, no driver |
| Screen weight | 180±18g |
| Apply to | Automotive Display |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | Parallel RGB (1 ch, 6-bit) , FPC 60 pins |
| Supply voltage | 3.3/11/20/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Storage temperature: -40 ~ 95 °C Working temperature: -30 ~ 85 °C; Vibration resistance: 2.9G (28.4 m/s²) |
| A080VTN01.0 8.0 inch LCD Display for Car GPS Navigation System | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Package:
The outer packaging is a sturdy carton, and the inner packaging is foam, which is strong and safe enough to avoid breakage during transportation.
guarantee:
1, We guarantee 6 months from the date of shipment, no matter the quality.
2. Please keep in touch with us, if you have any questions, please contact us immediately, we will help you solve the problem as soon as possible.
FAQ:
Q: If I place order now,when will you ship the goods of A080VTN01.0?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of A080VTN01.0 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods A080VTN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of A080VTN01.0 ?
A: We accept T/T , Paypal , western union .
