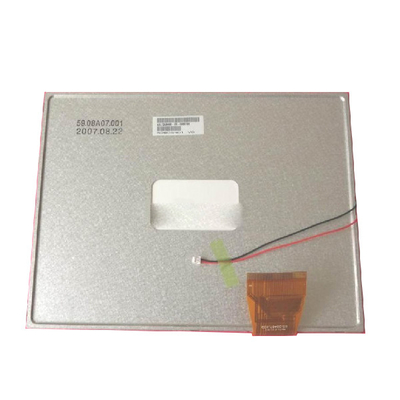

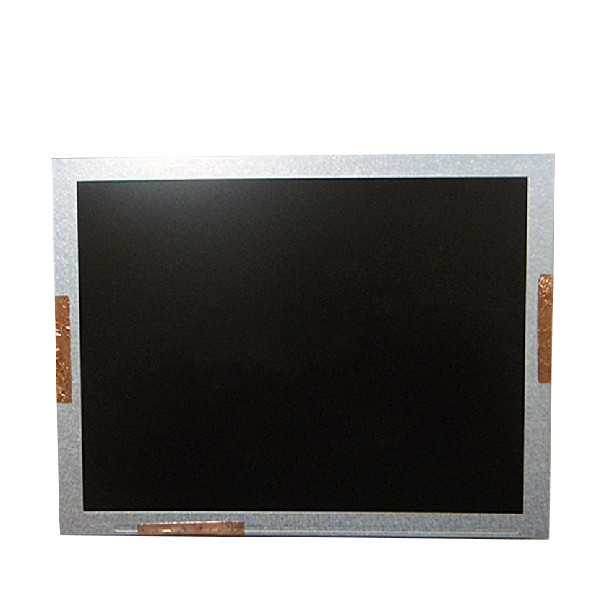

A080SN01 V.0 8 inch 800(RGB)×600 LCD Monitor Screen A080SN01 V0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080SN01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A080SN01 V0 | Screen Size: | 8.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600, SVGA, 125PPI | Active Area: | 162(W)×121.5(H) Mm |
| Outline Dim.: | 183(W)×141(H) Mm | Bezel Opening: | 163.8(W)×123.3(H) Mm |
| Panel Weight: | 235±10g | Application: | Digital Photo Frame / Portable DVD Player |
Product Description
A080SN01 V.0 8 inch 800(RGB)×600 LCD Monitor Screen A080SN01 V0
Product details :
| AUO LCD SCREEN A080SN01 V0 | |
| manufacturer | AUO |
| Model Name | A080SN01 V0 |
| screen size | 8.0 inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600, SVGA, 125PPI |
| Outline Size | RGB Vertical Stripe |
| Display size | 162(W)×121.5(H) mm |
| physical | 183(W)×141(H) mm |
| Visual size | 163.8(W)×123.3(H) mm |
| Surface | Matte |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 400:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 70/70/50/65 (Typ.)(CR≥10 |
| responding | 4/16 (Typ.)(Tr/Td) |
| Number of | 262K/16.7M |
| Backlight type | 3S8P WLED , 10K hours , Without Driver |
| Screen weight | 235±10g |
| Apply to | Digital Photo Frame / Portable DVD Player |
| Touch function | No touch |
| signal system | TTL (1 ch, 6/8-bit) + SPI, 60 pins, FPC |
| Supply voltage | 3.3/11.6/15/-6.75V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Working: -10 ~ 60 °C; Storage: -20 ~ 70 °C |
| A080SN01 V.0 8 inch 800(RGB)×600 LCD Monitor Screen A080SN01 V0 | |
