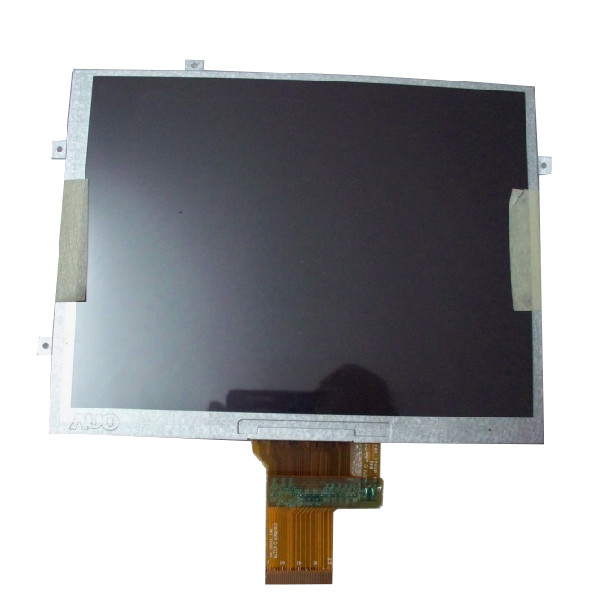

A070XN01 V0 40 PIN lcd display screen panel 7.0 inch Replacement maintenance
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | A070XN01 V0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | A070XN01 V0 | Screen Size: | 7.0inch |
---|---|---|---|
Pixel Format: | 1024(RGB)×768, XGA, 184PPI | Active Area: | 141.312(W)×105.984(H) Mm |
Outline Dim.: | 164(W)×119.2(H) ×3.5(D) Mm | Bezel Opening: | 143.312(W)×107.984(H) Mm |
Panel Weight: | 139g (Typ.) | Application: | Pad & Tablet |
Product Description
A070XN01 V0 40 PIN lcd display screen panel 7.0 inch Replacement maintenance
Product details :
AUO LCD SCREEN A070XN01 V0 | |
manufacturer | AUO |
Model Name | A070XN01 V0 |
screen size | 7.0 inch |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 1024(RGB)×768 [XGA] 184PPI |
Pixel Format | RGB Vertical Stripe |
Display size | 141.312 × 105.984 mm (H×V) |
Outline Size | 164 × 119.2 × 3.5 mm (H×V×D) |
Visual size | 143.312 × 107.984 mm (H×V) |
Surface | Matte,Hard coating (3H) |
Brightness | 330 (Typ.) |
Contrast | 800: 1 (Typ.) [Transmission] |
Best angle | Symmetry |
Optical mode | MVA, Normally Black, Transmissive |
Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
Response Time | 15/10 (Typ.)(Tr/Td) ms |
Display Colors | 16.2M 54% NTSC |
Backlight type | 3S9P WLED, 15K hours, no driver |
Screen weight | 139g (Typ.) |
Apply to | Pad & Tablet |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | LVDS (1 ch, 8-bit), FPC, 40 pins |
Supply voltage | 3.3/5.3/-5.3/15/-12V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) |
Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
A070XN01 V0 40 PIN lcd display screen panel 7.0 inch Replacement maintenance |
