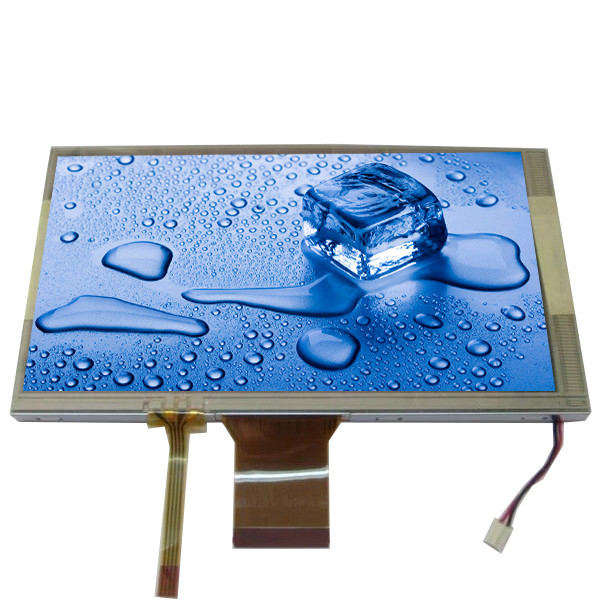

6.5 inch TFT-LCD DISPLAY screen MODULE 800(RGB)×480 A065VL01 V1
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A065VL01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A065VL01 V1 | Screen Size: | 6.5 Inches |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480, WVGA, 144PPI | Active Area: | 143.4(W)×79.2(H) Mm |
| Outline Dim.: | 157.2(W)×89.2(H) Mm | Bezel Opening: | 145.5(W)×81.3(H) Mm |
| Panel Weight: | 116±0.1g | Application: | Digital Photo Frame / Portable DVD Player / MP3 PMP |
Product Description
6.5 inch TFT-LCD DISPLAY screen MODULE 800(RGB)×480 A065VL01 V1
Product details :
| AUO LCD SCREEN A065VL01 V1 | |
| Panel Brand | AUO |
| Panel Model | A065VL01 V1 |
| Panel Size | 6.5" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480 [WVGA] 144PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 143.4 × 79.2 mm (H×V) |
| Bezel Opening | 145.5 × 81.3 mm (H×V) |
| Outline Size | 157.2 × 89.2 mm (H×V×D) |
| Surface | Haze (Haze 25%) |
| Brightness | 300 (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) [Transmission] |
| Viewing Angle | 55/55/45/60 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | 4S1P WLED , 10K hours, no driver |
| Application | Digital Photo Frame / Portable DVD Player / MP3 PMP |
| Touch Screen | Without |
| Panel Weight | 116±0.1g |
| Signal Interface | TTL (1 ch, 6-bit) , FPC , 80 pins |
| Input Voltage | 3.3/10.5/13.5/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Storage temperature: -25 ~ 80 °C Operating temperature: 0 ~ 60 °C |
| 6.5 inch TFT-LCD DISPLAY screen MODULE 800(RGB)×480 A065VL01 V1 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
FAQ:
Q: If I place order now,when will you ship the goods of A065VL01 V1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of A065VL01 V1 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of A065VL01 V1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of A065VL01 V1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
