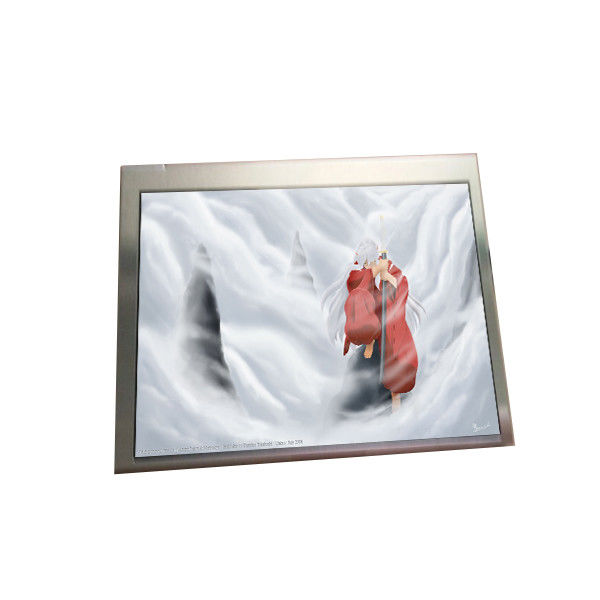

Original AUO 5.6 inch A056DN01 LCD display screen panel module

Original AUO 5.6 inch A056DN01 LCD display screen panel module

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: A056DN01

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: A056DN01 Screen Size: 5.6 Inch
Pixel Format: 320(RGB)×234 71PPI Active Area: 113.28(H)×84.708(V) Mm
Outline Dim.: 126.5(H)×100(V) Mm Bezel Area: 116.08(H)×87.51(V) Mm
Panel Weight: 145±10g Application: Digital Photo Frame / Portable DVD Player / Video Door Phone

Product Description

Original AUO 5.6 inch A056DN01 LCD display screen panel module





Product details :

AUO LCD SCREEN A056DN01
manufacturer AUO
Model Name A056DN01
screen size 5.6 inches
Types of a-Si TFT-LCD, LCD module
Resolution 320(RGB)×234, 71PPI
Configuration RGB Vertical Stripe
Display size 113.28(W)×84.708(H) mm
Outline Dim. 126.5(W)×100(H) mm
Visual size 116.08(W)×87.51(H) mm
Brightness 300 cd/m² (Typ.)
Contrast 150:1 (Typ.) (TM)
Best angle 6 o'clock
Optical mode TN, normally white display, transmissive
Viewing angle 45/45/10/30 (Min.)(CR≥10)
responding 15/20 (Typ.)(Tr/Td) ms
Backlight type 1 pcs CCFL, 15K hours, without driver
Screen weight 145±10g
Apply to Digital Photo Frame / Portable DVD Player / Video Door Phone
signal system TFT Specific Analog RGB, 26 pins, FPC
Supply voltage 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Maximum Working: 0 ~ 60 °C; Storage: -25 ~ 80 °C
Original AUO 5.6 inch A056DN01 LCD display screen panel module

Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :





Original AUO 5.6 inch A056DN01 LCD display screen panel module 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



Shipping:



We usually use China or HK Post Air Mail. Please contact with us if you want to use other courier, such as DHL, FedEx, UPS, TNT, EMS. You will pay the extra charge. We will give you the tracking number after sent out.



FAQ:

Q: Do you accept the A056DN01 sample order?

A: Yes , sample order is welcome.



Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.



Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.



Q: Can you test the lcd panel A056DN01 before shipping ?

A: 90DAYS.



Q: How long will I receive my goods of lcd A056DN01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
