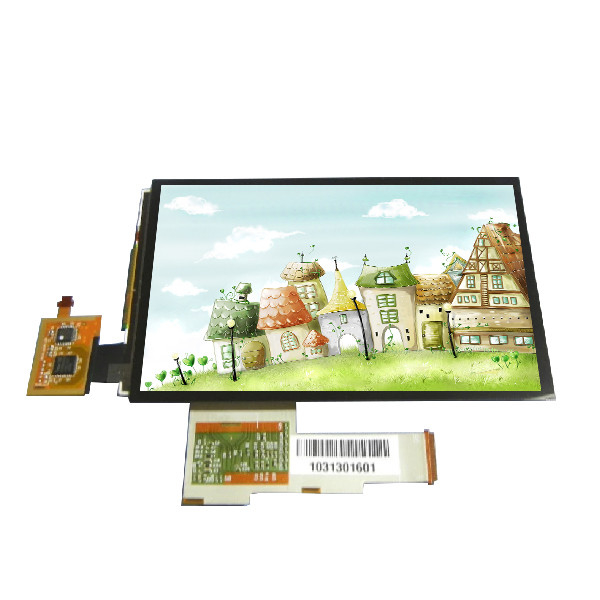

AUO 5 inch 640×480 A050VN01 V0 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A050VN01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A050VN01 V0 | Screen Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Format: | 640(RGB)×480, VGA, 159PPI | Active Area: | 101.76(W)×76.32(H) Mm |
| Outline Dim.: | 126.1(W)×98.23(H) ×15(D) Mm | Brightness: | 350 Cd/m² (Typ.) |
| Panel Weight: | 82.6g (Typ.) | Display Colors: | 262K |
Product Description
AUO 5 inch 640×480 A050VN01 V0 LCD Screen Display Panel
Product details :
| AUO LCD SCREEN A050VN01 V0 | |
| manufacturer | AUO |
| Model Name | A050VN01 V0 |
| screen size | 5.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 640(RGB)×480, VGA, 159PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 101.76(W)×76.32(H) mm |
| physical dimension | 126.1(W)×98.23(H) ×15(D) mm |
| surface treatment | Antiglare |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 65/65/45/65 (Typ.)(CR≥10) |
| Responding time | 15/25 (Typ.)(Tr/Td) |
| Number of color | 262K |
| Backlight type | WLED , 50K hours , With LED Driver |
| Panel weight | 82.6g (Typ.) |
| Touch function | No touch |
| signal system | Parallel RGB (1 ch, 6-bit) , 40 pins FPC |
| Supply voltage | 3.3V (Typ.)(VDD) |
| Maximum rating | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -10 ~ 70 °C |
| AUO 5 inch 640×480 A050VN01 V0 LCD Screen Display Panel | |
Attention:
1. When you contact us, please provide the next information by photos for us to analysis:
A. Your screen type name. (Take a photo of the screen backside label)
2. When you return one product to the warehouse, it sometimes means throw away it. The probability of being recycled is very, very low. So in order to protect our environment, we hope you can take time to analysis or contact the seller before you return this product. Thanks a lot.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Do you accept the A050VN01 V0 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you test the lcd panel A050VN01 V0 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: When happen if I received the lcd panel A050VN01 V0 doesn't work ?
A: First , Our lcd A050VN01 V0 was tetsed ok before shipping , pls check the connect cable again ,If still has problems , we accept the return or exchange it .
Q: How long will I receive my goods of lcd A050VN01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
