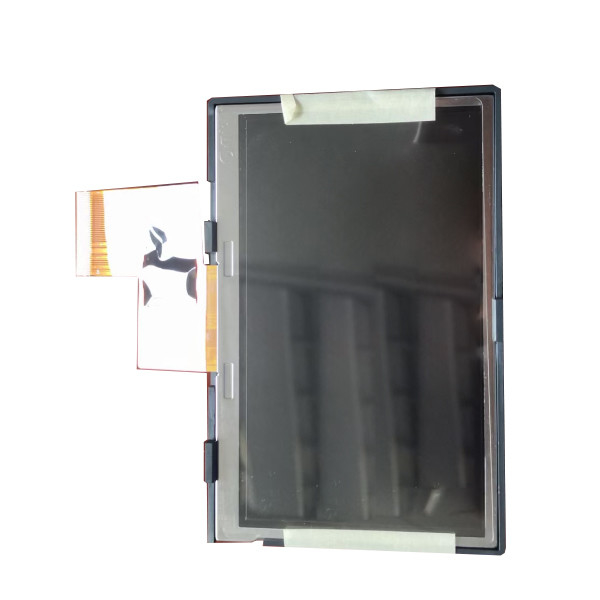

LCD panel A050FW01 V1 480(RGB)×272 5.0 INCH LCD Touch Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A050FW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A050FW01 V1 | Screen Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Format: | 480(RGB)×272, WQVGA, 109PPI | Active Area: | 110.88(W)×62.832(H) Mm |
| Outline Dim.: | 120.7(W)×75.8(H) ×4.51(D) Mm | Bezel Opening: | 113.48(W)×65.43(H) Mm |
| Touch Screen: | 4-wire Resistive Touch | Used For: | Automotive Display / Portable Navigation / MP3 PMP |
Product Description
LCD panel A050FW01 V1 480(RGB)×272 5.0 INCH LCD Touch Panel Display
Product details :
| AUO LCD SCREEN A050FW01 V1 | |
| manufacturer | AUO |
| Model Name | A050FW01 V1 |
| screen size | 5.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 480(RGB)×272, WQVGA, 109PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 110.88(W)×62.832(H) mm |
| physical dimension | 120.7(W)×75.8(H) ×4.51(D) mm |
| Visual size | 113.48(W)×65.43(H) mm |
| surface treatment | Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| Responding time | 15/20 (Typ.)(Tr/Td) |
| Number of color | 16.7M |
| Backlight type | 10S1P WLED , Without Driver |
| Apply to | Automotive Display / Portable Navigation / MP3 PMP |
| Refresh rate | 60Hz |
| Touch function | 4-wire Resistive Touch |
| signal system | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Maximum rating | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -55 ~ 125 °C |
| LCD panel A050FW01 V1 480(RGB)×272 5.0 INCH LCD Touch Panel Display | |
buyer must read!!!
Pls note:
1:Description before buying, please carefully read the title, please make sure the board models and machine models, if not sure, right to buy the product does not match the work, this is the responsibility as a buyer, we are not responsible for, we can accept the return of goods, but we will not bear the transportation cost, if you have not understand problem, you can always send email to us, we will reply to your mail, thank you!
2.These products are used,we will test it before we sent ,
3. All product have been tested before shipping. If the product is faulty during shipping, please inform us immediately after your received it.
4: Don't open a dispute because the product is old. We have a detailed description. If you can't accept it, please don't make the order, and avoid causing unnecessary disputes. Thank you!
5:Part of the product is new and original, in the case of inventories have new stock, we will send all the new products, if in the case of new stock sold out, we will send the old products, but all products are strictly tested before sending, so don't worry!hope you can understand!
6:All products have a three-month guarantee period if have any quality problems, you can contact to us ,we can change goods and maintenance, If you are not satisfied, We will try our best to satisfy you without any loss. donot worry
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: If I place order now,when will you ship the goods of A050FW01 V1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of A050FW01 V1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of A050FW01 V1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods A050FW01 V1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
