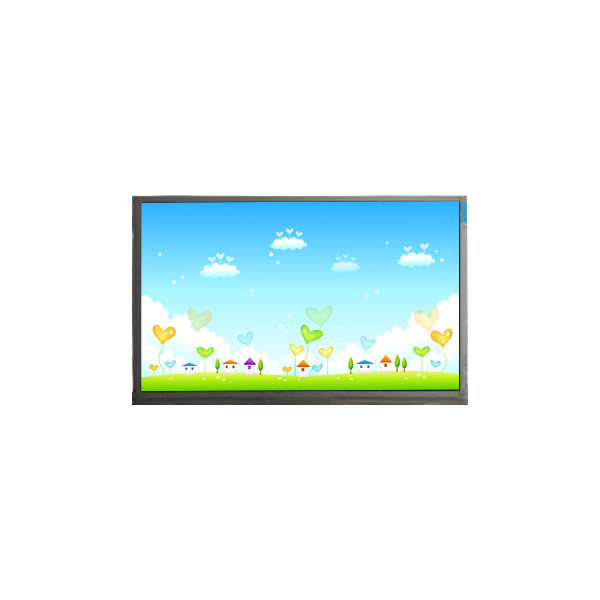

10.1 inch LCD Screen Panel Display C101NWN8-0 for laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | C101NWN8-0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C101NWN8-0 | Screen Size: | 10.1" |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA 155PPI | Active Area: | 222.52(W)×125.11(H) Mm |
| Outline Dim.: | 230.519(W)×133.907(H)×1(D) Mm | Surface: | Without Polarizer |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Frequency: | 60Hz |
| Display Colors: | 16.7M 45%NTSC | Application: | Laptop |
Product Description
10.1 inch LCD Screen Panel Display C101NWN8-0 for laptop
Product details :
| Brand | IVO |
| Model P/N | C101NWN8-0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 1366(RGB)×768, WXGA 155PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.52(W)×125.11(H) mm |
| Bezel Opening | - |
| Outline Size | 230.519(W)×133.907(H)×1(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 8 (Typ.)(Tr+Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.58% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 45%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Suggest RM67050, RM76072 |
| Shape Style | - |
| Application | Laptop |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
1. WORLDWIDE SHIPPING. (Except some countries and APO / FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
FAQ:
Q: If I order C101NWN8-0 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for C101NWN8-0 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of C101NWN8-0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of C101NWN8-0 ?
A: 90 days warranty .
