Industrial LCD Panel Display

NL12880BC20-07F Original 12.1 inch Industrial LCD Display with waterproof capacitive touch screen

All Category

Floor Standing Digital Signage

NL12880BC20-07F Original 12.1 inch Industrial LCD Display with waterproof capacitive touch screen

Brand Name:	NLT
Model Number:	NL12880BC20-07F
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NL12880BC20-07F

Screen Size:

12.1 Inch

Pixel Number:

1280(RGB)×800 (WXGA) 124PPI

Active Area(mm):

261.12 × 163.2 (H×V)

Outline(mm):

277.7 × 180.6 × 9.2 (H×V×D)

Visual Size:

266.1 × 168.2 (H×V)

Luminance:

1800 (Typ.)(cd/m²)

Contrast Ratio:

800 : 1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

NL12880BC20-07F Original 12.1 inch Industrial LCD Display with waterproof capacitive touch screen

Product details :

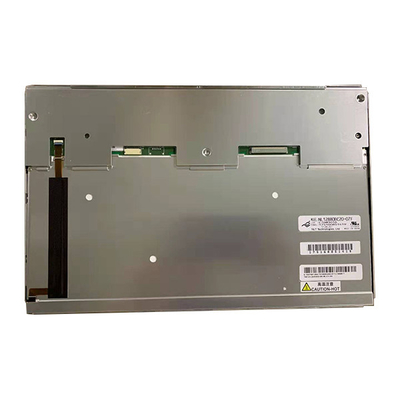

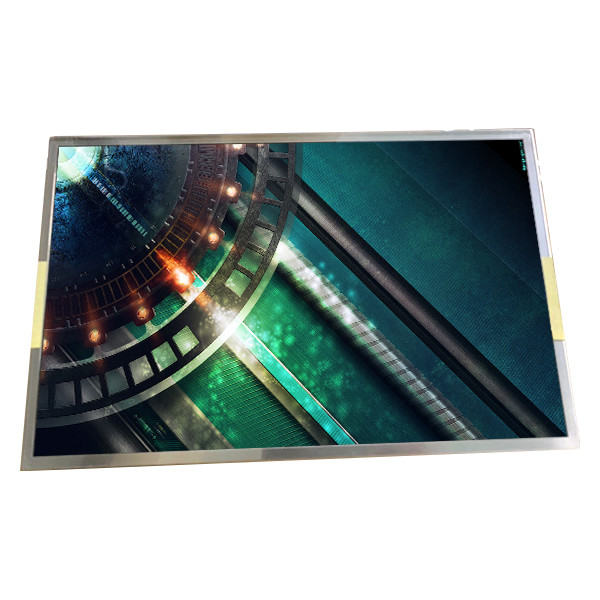

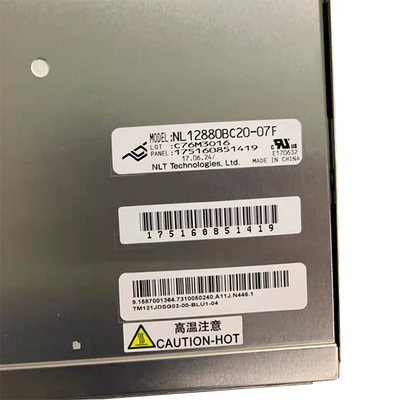

NLT LCD SCREEN NL12880BC20-07F
manufacturer	NLT
Model Name	NL12880BC20-07F
screen size	12.1 inch
Screen type	a-Si TFT-LCD , LCM
Resolution	1280(RGB)×800 (WXGA) 124PPI
Pixel configuration	RGB Vertical Stripe
Display size	261.12 × 163.2 (H×V)
physical dimension	277.7 × 180.6 × 9.2 (H×V×D)
Visual size	266.1 × 168.2 (H×V)
surface treatment	Antiglare, Hard coating (3H)
Brightness	1800 (Typ.)(cd/m²)
Contrast	800 : 1 (Typ.) (TM)
Optical mode	TN, Normally White, Transmissive
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
Responding time	3/15 (Typ.)(Tr/Td) ms
Number of color	262K/16.7M 40% NTSC
Backlight type	5 strings WLED , 60K hours , No Driver
Panel weight	470/500g (Typ./Max.)
Apply to	Industrial / Outdoor High Brightness
Refresh rate	60Hz
Touch function	No touch
signal system	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Supply voltage	3.3V (Typ.)
Maximum rating	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)
NL12880BC20-07F Original 12.1 inch Industrial LCD Display with waterproof capacitive touch screen

About US:

We Promise to:
* Manufacture only the best consumer goods and ensure the highest quality possible.
* Deliver goods to our customers all over the world with speed and precision

Shipping and Package :

NL12880BC20-07F Original 12.1 inch Industrial LCD Display with waterproof capacitive touch screen 0

FAQ:

Q: Do you accept the NL12880BC20-07F sample order?

A: Yes , sample order is welcome.

Q: How long is the warranty of NLT LCD PANEL NL12880BC20-07F ?

A: 90DAYS.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you test the lcd panel NL12880BC20-07F before shipping ?

A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.

Q: How long will I receive my goods of lcd NL12880BC20-07F ?

A: Generally speaking ,It will take 3-8 days to your hand by DHL/FEDEX/UPS/TNT.

Customer Service Policy
We are more than happy to answer any questions that you have, please contact with us and we will do our best to get back to you as quickly as possible.
