• NL8060AC26-52D 10.4 inch 800*600 lcd panel display
  • NL8060AC26-52D 10.4 inch 800*600 lcd panel display

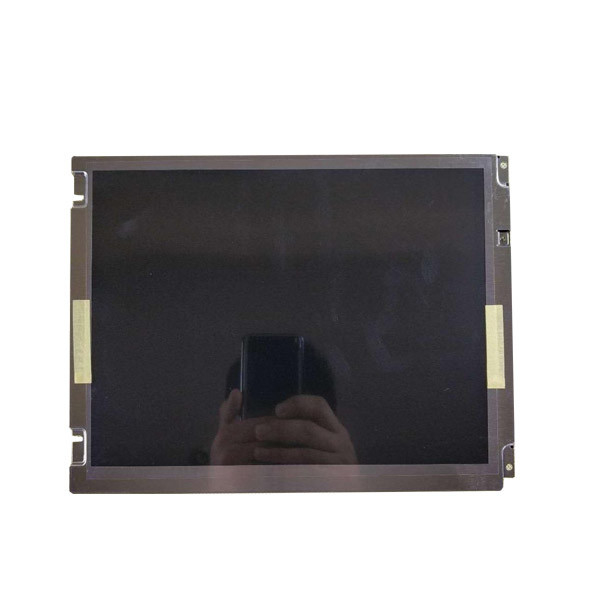

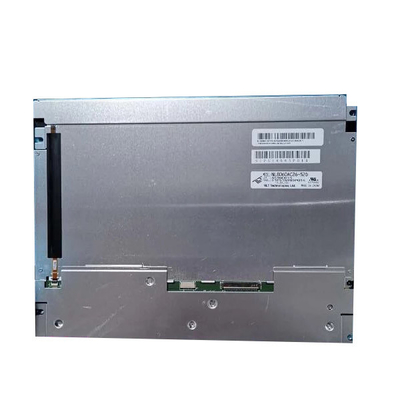

NL8060AC26-52D 10.4 inch 800*600 lcd panel display

NL8060AC26-52D 10.4 inch 800*600 lcd panel display

Product Details:

Place of Origin: China
Brand Name: NLT
Model Number: NL8060AC26-52D

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: NL8060AC26-52D Screen Size: 10.4 Inch
Pixel Format: 800(RGB)×600 (SVGA) 96PPI Display Area: 211.2 × 158.4 (H×V)
Outline Size: 243 × 185.1 × 11 (H×V×D) Bezel Area: 215.4 × 161.8 (H×V)
Brightness: 400 Cd/m² (Typ.) Weight: 430/465g (Typ./Max.)

Product Description

NL8060AC26-52D 10.4 inch 800*600 lcd panel display



Product details :

Manufacturer NLT
Model Name NL8060AC26-52D
Screen Size 10.4 inch
Types of a-Si TFT-LCD, LCM
Resolution 800(RGB)×600 SVGA 96PPI
Pixel arrangement RGB vertical bar
Display area 211.2(H)×158.4(V) mm
physical dimension 243(H)×185.1(V) ×11(T) mm
Open area 215.4(H)×161.8(V) mm
Surface treatment Matte, Hard coating (3H)
Display brightness 400 cd/m² (Typ.)
Contrast 900:1 (Typ.) (transmission)
Recommended perspective 6 o'clock
Response time 3/15 (Typ.)(Tr/Td) ms
Viewing angle 80/80/80/80 (Typ.)(CR≥10)
Display mode TN, normally white display, transmissive
Support color 262K/16.7M, 40% NTSC
type of light source WLED, 100K hours, with LED driver
weight 430/465g (Typ./Max.)
Frame rate 60Hz
Touch technology No touch
Interface Type 20 pins LVDS (1 ch, 6/8-bit), connector
Voltage supply 3.3V (Typ.)
Application Environment Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
