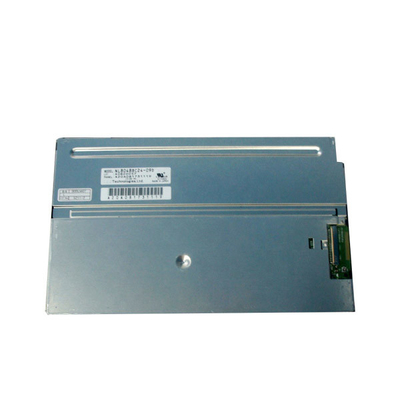

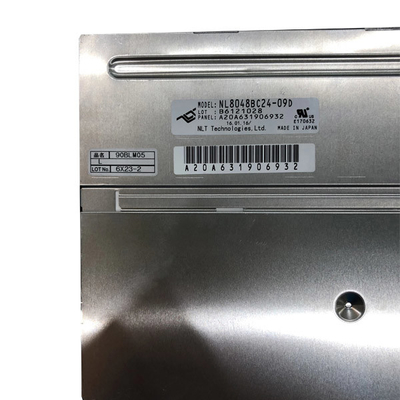

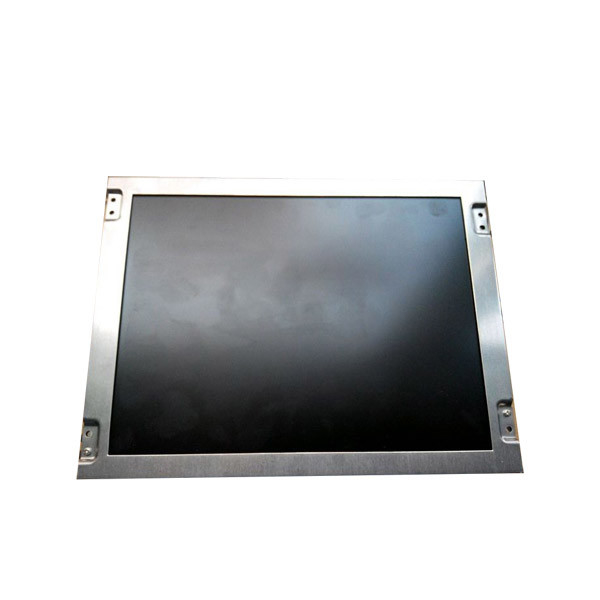

NL8048BC24-09D TFT LCD Displays 9.0 inch LCD panel new and original
Product Details:
Place of Origin: | China |
Brand Name: | NEC |
Model Number: | NL8048BC24-09D |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | NL8048BC24-09D | Screen Size: | 9.0 Inch |
---|---|---|---|
Pixel Format: | 800(RGB)×480, WVGA, 103PPI | Display Area: | 196.8(W)×118.08(H) Mm |
Outline Size: | 220.5(W)×136.5(H) ×8.7(D) Mm | Bezel Area: | 200.2(W)×120.4(H) Mm |
Brightness: | 400 Cd/m² (Typ.) | Weight: | 275/290g (Typ./Max.) |
Product Description
NL8048BC24-09D TFT LCD Displays 9.0 inch LCD panel new and original
Product details :
NEC LCD SCREEN NL8048BC24-09D | |
Manufacturer | NEC |
Model Name | NL8048BC24-09D |
Screen Size | 9.0 inch |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 800(RGB)×480 [WVGA] 103PPI |
Pixel configuration | RGB vertical bar |
Display size | 196.8 × 118.08 mm (H×V) |
physical dimension | 220.5 × 136.5 × 8.7 mm (H×V×D) |
Visual size | 200.2 × 120.4 mm (H×V) |
Surface treatment | Matte, Hard coating (3H) |
Brightness (cd/m²) | 400 (Typ.) |
Contrast | 800: 1 (Typ.) [Transmission] |
Best angle | Full view |
Optical mode | UA-SFT, normally black display, transmissive |
Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
responding speed | 10/15 (Typ.)(Tr/Td) ms |
Number of colors | 262K/16.7M, 60% NTSC |
Backlight type | 7S3P WLED, 70K hours, optional |
Screen weight | 275/290g (Typ./Max.) |
Refresh rate | 60Hz |
Touch function | No touch |

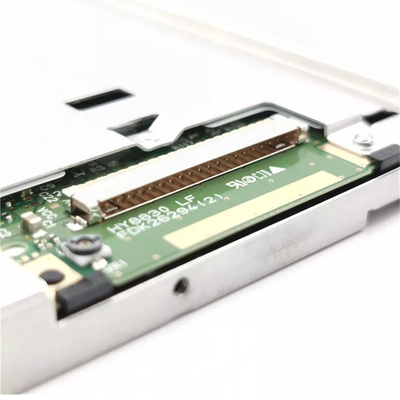

signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
NL8048BC24-09D TFT LCD Displays 9.0 inch LCD panel new and original |
Features:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: If I place order now,when will you ship the goods of NL8048BC24-09D ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of NL8048BC24-09D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NL8048BC24-09D ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of NL8048BC24-09D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
