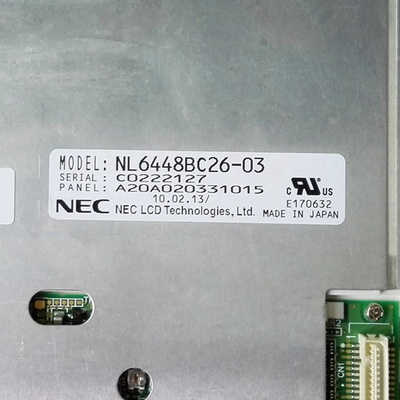

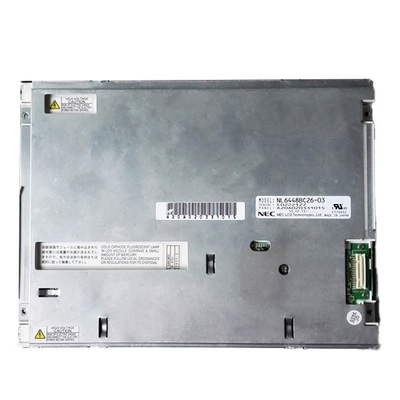

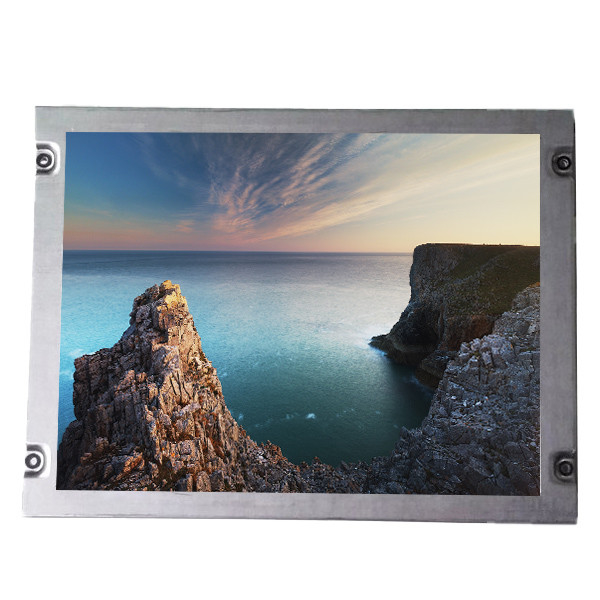

NL6448BC26-03 touch screen LCD display TFT Module 8.4 inch 640x480
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC26-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448BC26-03 | Screen Size: | 8.4 Inch |
|---|---|---|---|
| Pixel Format: | 640(RGB)×480, VGA, 95PPI | Display Area: | 170.88(W)×128.16(H) Mm |
| Outline Size: | 200(W)×152(H) Mm | Bezel Area: | 174.0(W)×131.4(H) Mm |
| Brightness: | 450 Cd/m² (Typ.) | Weight: | 375/400g (Typ./Max.) |
Product Description
NL6448BC26-03 touch screen LCD display TFT Module 8.4 inch 640x480
Product details :
| NEC LCD SCREEN NL6448BC26-03 | |
| Manufacturer | NEC |
| Model Name | NL6448BC26-03 |
| Screen Size | 8.4 inches |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 640(RGB)×480, VGA, 95PPI |
| Pixel layout | RGB vertical bar |
| Display area | 170.88(W)×128.16(H) mm |
| Viewable area | 174.0(W)×131.4(H) mm |
| physical dimension | 200(W)×152(H) mm |
| Surface treatment | Matte, Hard coating (2H) |
| Panel brightness | 450 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Viewing angle | 70/40/55/55 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 9 o'clock |
| Reaction time | 10/25 (Typ.)(Tr/Td) ms |
| Display color | 262K, 40% NTSC |
| type of light source | 2 pcs CCFL, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 375/400g (Typ./Max.) |
| Signal interface | CMOS (1 ch, 6-bit), 31 pins, connector |
| Drive screen voltage | 3.3/5.0V (Typ.)(VCC) |
| working environment | Work: 0 ~ 60 °C; Storage: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC26-03 touch screen LCD display TFT Module 8.4 inch 640x480 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
FAQ:
Q: If I place order now,when will you ship the goods of NL6448BC26-03 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of NL6448BC26-03 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of NL6448BC26-03 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of NL6448BC26-03 ?
A: Of course!If you make a large order, we will give you a discount.
