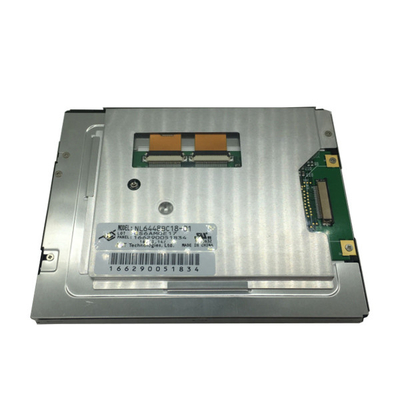

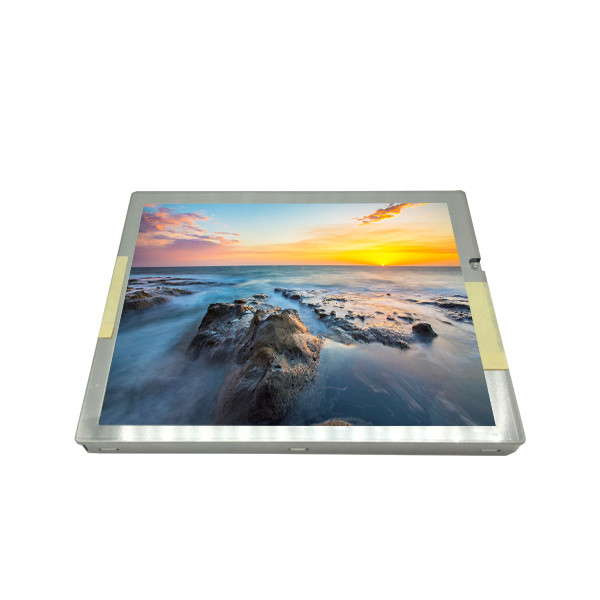

Name: NEC 5.7 inch TFT LCD Panel Display NL6448BC18-01 LCD Screen Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: NL6448BC18-01
Availability: InStock

Brand Name:	NEC
Model Number:	NL6448BC18-01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NL6448BC18-01

Screen Size:

5.7 Inch

Pixel Format:

640(RGB)×480 [VGA] 139PPI

Display Area:

116.16(H)×87.12(V) Mm

Outline Size:

135(H)×104.6(V) ×10.9(D) Mm

Bezel Area:

120.2(H)×91.2(V) Mm

Brightness:

400 Cd/m² (Typ.)

Weight:

160/170g (Typ./Max.)

Supply Ability:

100000 Unit/Units per Month

Product Description

NEC 5.7 inch TFT LCD Panel Display NL6448BC18-01 LCD Screen Display

Product details :

NEC LCD SCREEN NL6448BC18-01
Manufacturer	NEC
Model Name	NL6448BC18-01
Screen Size	5.7 inch
Screen type	a-Si TFT-LCD, LCM
Number of pixels	640(RGB)×480, VGA, 139PPI
Pixel layout	RGB vertical bar
Display area	116.16(W)×87.12(H) mm
Viewable area	120.2(W)×91.2(H) mm
physical dimension	135(W)×104.6(H) ×10.9(T) mm
Surface treatment	Clear, Hard coating (3H)
Panel brightness	400 cd/m² (Typ.)
Contrast	850:1 (Typ.) (TM)
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
Operating mode	TN, normally white display, transmissive
Reaction time	3/15 (Typ.)(Tr/Td) ms
Display color	262K, 60% NTSC
type of light source	9S2P WLED, 50K hours, without driver
working frequency	60Hz
touch screen	No touch
Panel weight	160/170g (Typ./Max.)
Signal interface	CMOS (1 ch, 6-bit), 33 pins, connector
Drive screen voltage	3.3V (Typ.)
working environment	Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
NEC 5.7 inch TFT LCD Panel Display NL6448BC18-01 LCD Screen Display

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

NEC 5.7 inch TFT LCD Panel Display NL6448BC18-01 LCD Screen Display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Packing :

Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport

FAQ:

Q: Can you give me a discount if I need a large quantity of NL6448BC18-01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of NL6448BC18-01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How to make payment of NL6448BC18-01 ?

A: We accept T/T , Paypal , western union .
