NEW 10.4 inch 640*480 TFT-LCD lcd display NL6448AC33-29
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448AC33-29 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448AC33-29 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Format: | 640(RGB)×480, VGA, 76PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Outline Size: | 243(W)×185.1(H) ×11.2(D) Mm | Bezel Area: | 215.4(W)×161.8(H) Mm |
| Brightness: | 250 Cd/m² (Typ.) | Weight: | 525g (Typ.) |
Product Description
NEW 10.4 inch 640*480 TFT-LCD lcd display NL6448AC33-29
Product details :
| NEC LCD SCREEN NL6448AC33-29 | |
| Manufacturer | NEC |
| Model Name | NL6448AC33-29 |
| Screen Size | 10.4 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 243 × 185.1 × 11.2 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Clear, anti-reflection treatment |
| Brightness (cd/m²) | 250 (Typ.) |
| Contrast | 150: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | SFT, normally black display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 50/50 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 45% NTSC |
| Backlight type | 2 pcs CCFL, with inverter |
| Screen weight | 525g (Typ.) |
| Refresh rate | 60Hz |
| Touch function | No touch |

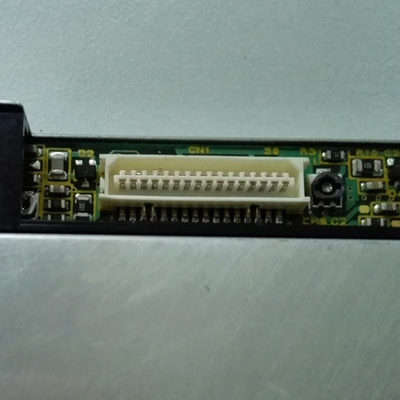

| signal system | CMOS (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 3.3/5.0V (Typ.)(VCC) |
| Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NEW 10.4 inch 640*480 TFT-LCD lcd display NL6448AC33-29 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
FAQ:
Q: Do you accept sample order of NEC NL6448AC33-29 ?
A: Yes, Welcome.
Q: How long the warranty of the CSTN-LCD NL6448AC33-29 ?
A: 90 days .
Q: What happen if the lcd panel NL6448AC33-29 I received can't work ?
A: 10.4 inch lcd screen NL6448AC33-29 was Strictly tested before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Can you declared low value of my order NEC lcd NL6448AC33-29 ?
A: Yes , we can . pls inform us before shipping .
