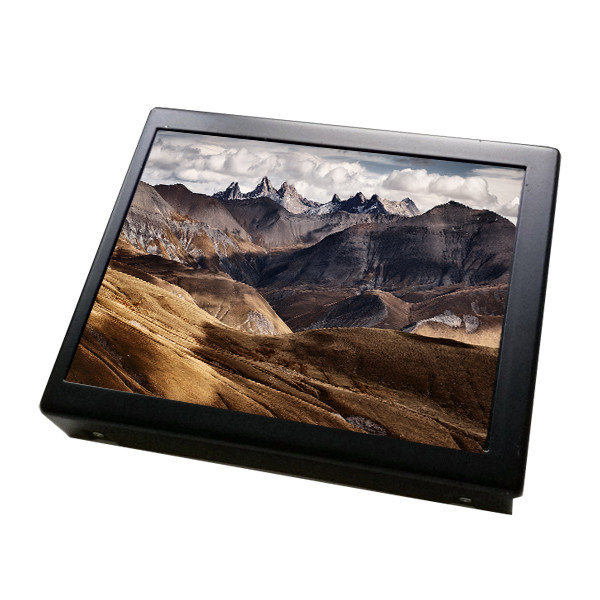

Original for NEC NL3224AC35-01 5.5 inch LCD screen Display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL3224AC35-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL3224AC35-01 | Screen Size: | 5.5 Inch |
|---|---|---|---|
| Pixel Format: | 320(RGB)×240 [QVGA] 72PPI | Display Area: | 111.36(H)×83.52(V) Mm |
| Outline Size: | 134(H)×110(V) Mm | Luminance: | 220 Cd/m² (Typ.) |
| Response Time: | 85:1 (Typ.) (TM) | Weight: | 315/330g (Typ./Max.) |
Product Description
Original for NEC NL3224AC35-01 5.5 inch LCD screen Display panel
Product details :
| NEC LCD SCREEN NL3224AC35-01 | |
| Manufacturer | NEC |
| Model Name | NL3224AC35-01 |
| Screen Size | 5.5 inch |
| Screen type | a-Si TFT-LCD, LCM |
| Number of pixels | 320(RGB)×240, QVGA, 72PPI |
| Pixel layout | RGB vertical bar |
| Display area | 111.36(W)×83.52(H) mm |
| physical dimension | 134(W)×110(H) mm |
| Surface treatment | Matte |
| Panel brightness | 220 cd/m² (Typ.) |
| Contrast | 85:1 (Typ.) (TM) |
| Viewing angle | 45/45/30/15 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Reaction time | 16/44 (Typ.)(Tr/Td) ms |
| Display color | Full color, 50% NTSC |
| type of light source | 1 pcs CCFL, with inverter |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 315/330g (Typ./Max.) |

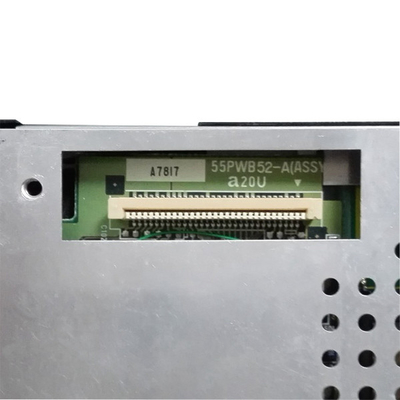

| Signal interface | Analog RGB, 30 pins, Connector |
| Drive screen voltage | 9.5V (Typ.) |
| working environment | Work: -30 ~ 85 °C; Storage: -40 ~ 95 °C; Vibration resistance: 3.0G (29.4 m/s²) |

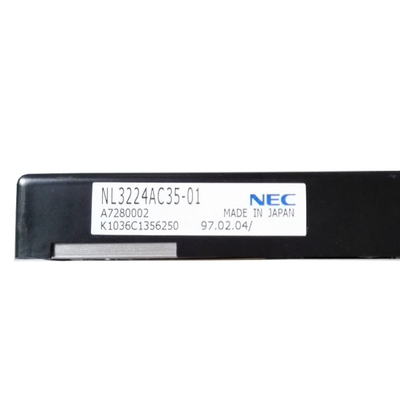

| NEC new and original NL3224AC35-01 lcd display screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: Can I pay my order of NL3224AC35-01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL3224AC35-01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NL3224AC35-01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of NL3224AC35-01 ?
A: Of course!sample order is welcome !
