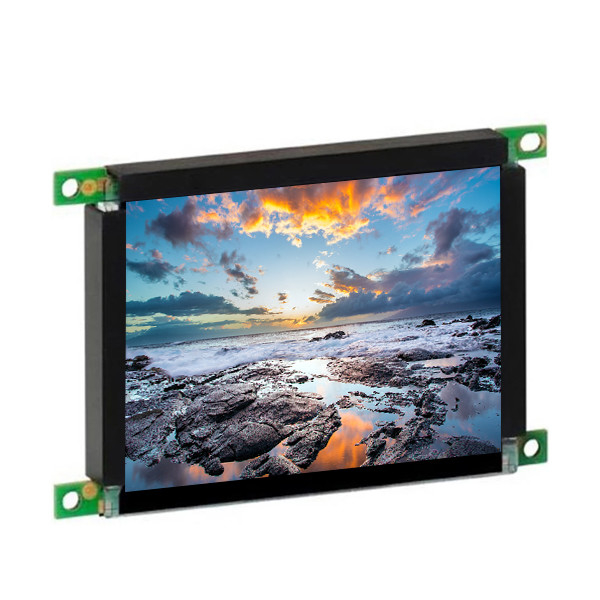

3.1 inch 160*120 EL160.120.39 EL-lcd panel modules display monitors
Product Details:
| Place of Origin: | China |
| Brand Name: | Lumineq |
| Model Number: | EL160.120.39 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EL160.120.39 | Screen Size: | 3.1 Inch |
|---|---|---|---|
| Screen Type: | 160×120 [QQVGA] 65PPI | Display Area: | 62.3(H)×46.7(V) Mm |
| Outline Size: | 93.6(H)×61.5(V) Mm | Response Time: | 1 (Max.) |
| Panel Weight: | 65.0g | Designed For: | Industrial |
Product Description
3.1 inch 160*120 EL160.120.39 EL-lcd panel modules display monitors
Product details :
| Lumineq LCD SCREEN EL160.120.39 | |
| Manufacturer | Lumineq |
| Model Name | EL160.120.39 |
| Screen Size | 3.1 inch |
| Screen type | EL, EL display |
| Resolution | 160×120 QQVGA 65PPI |
| Pixel arrangement | rectangle |
| Display area | 62.3(H)×46.7(V) mm |
| physical dimension | 93.6(H)×61.5(V) mm |
| Display brightness | 70 cd/m² (Typ.) |
| Contrast | 60:1 (Typ.) (transmission) |
| Recommended perspective | Full view |
| Response time | 1 (Max.) ms |
| Viewing angle | 89/89/89/89 (Typ.) |
| Support color | Single color (yellow) |
| type of light source | Self-luminous, 50K hours |
| weight | 65.0g |
| Frame rate | 150Hz |
| Touch technology | No touch |
| Interface Type | 20 pins Parallel Data (1ch, 4-bit), Connector |
| Voltage supply | 5.25/18V (Typ.)(VL/VH) |
| Application Environment | Working temperature: -50 ~ 70 °C; Storage temperature: -60 ~ 105 °C; Vibration resistance: 3.16G (31.0 m/s²) |
| 3.1 inch 160*120 EL160.120.39 EL-lcd panel modules display monitors | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping
(Please note: business/working days: NOT including the weekedn nor the holidays)
· 1 All items will be dispatched within 48 hours ( 2 working days ) after the payment is verified. The shipping time of the following sometimes maybe a little longer due to custom problems, holidays or something uncertain reasons.
FAQ:
Q: Can you give me a discount if I need a large quantity of EL160.120.39 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods EL160.120.39 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of EL160.120.39 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of EL160.120.39 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
