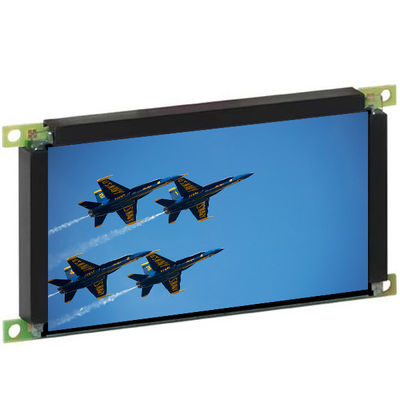

3.5 inch EL panel EL160.80.50-ET LCD display monitors
Product Details:
| Place of Origin: | China |
| Brand Name: | Lumineq |
| Model Number: | EL160.80.50-ET |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EL160.80.50-ET | Screen Size: | 3.5 Inch |
|---|---|---|---|
| Screen Type: | 160×80, 50PPI | Display Area: | 79.9(W)×39.9(H) Mm |
| Outline Size: | 108.9(W)×57.2(H) Mm | Display Colors: | Mono(Yellow) |
| Panel Weight: | 77.0g (Typ.) | Designed For: | Industrial |
Product Description
3.5 inch EL panel EL160.80.50-ET LCD display monitors
Product details :
| Lumineq LCD SCREEN EL160.80.50-ET | |
| Manufacturer | Lumineq |
| Model Name | EL160.80.50-ET |
| Screen Size | 3.5" |
| Screen type | EL display, EL |
| Resolution | 160×80 50PPI |
| Pixel configuration | rectangle |
| Display size | 79.9 × 39.9 mm (H×V) |
| physical dimension | 108.9 × 57.2 mm (H×V×D) |
| Brightness (cd/m²) | 80 (Typ.) |
| Contrast | 50: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Viewing angle | 89/89/89/89 (Typ.) |
| responding speed | 1 (Max.) ms |
| Number of colors | Single color (yellow) |
| Backlight type | Self-luminous, 50K hours |
| Screen weight | 77.0g (Typ.) |
| Refresh rate | 240Hz |
| Touch function | No touch |
| signal system | Parallel Data (1ch, 4-bit), connector, 20 pins |
| Supply voltage | 5/12V (Typ.)(VL/VH) |
| Maximum rating | Storage temperature: -40 ~ 85 °C Working temperature: -40 ~ 65 °C |
| 3.5 inch EL panel EL160.80.50-ET LCD display monitors | |
