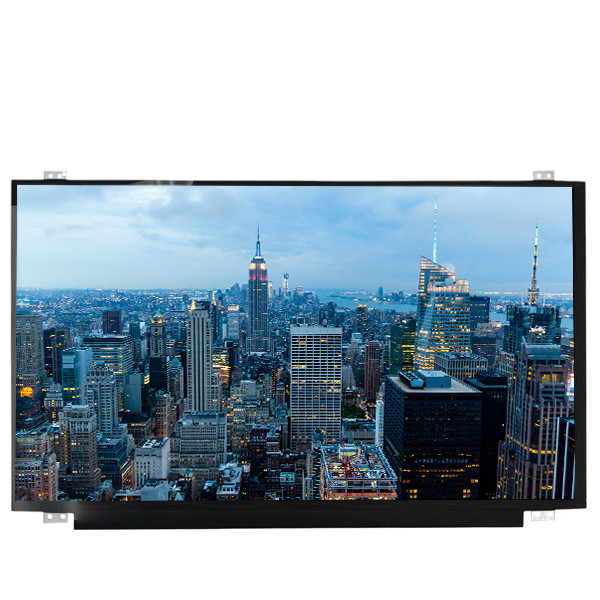

14.0 inch laptop ips display led lcd screen LP140WF1-SPU1 for Lenovo T440S
Product Details:
Place of Origin: | China |
Brand Name: | LG Display |
Model Number: | LP140WF1-SPU1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LP140WF1-SPU1 | Screen Size: | 14.0 Inch |
---|---|---|---|
Screen Type: | 1920(RGB)×1080 [FHD] 157PPI | Display Area: | 320.4(H)×205.1(V) ×3(D) Mm |
Outline Size: | 890(H)×378.8(V) Mm | Bezel Area: | 312.5(H)×177.1(V) Mm |
Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
Product Description
14.0 inch laptop ips display led lcd screen LP140WF1-SPU1 for Lenovo T440S
Product details :
LG Display LCD SCREEN LP140WF1-SPU1 (LGD03FF) | |
Manufacturer | LG Display |
Model Name | LP140WF1-SPU1 (LGD03FF) |
Screen Size | 14.0 inch |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 1920(RGB)×1080 [FHD] 157PPI |
Pixel configuration | RGB vertical bar |
Display size | 309.31 × 173.99 mm (H×V) |
physical dimension | 320.4 × 205.1 × 3 mm (H×V×D) |
Visual size | 312.5 × 177.1 mm (H×V) |
Surface treatment | Mirror (Haze 0%) |
Brightness (cd/m²) | 330 (Typ.) |
Contrast | 700: 1 (Typ.) [Transmission] |
Best angle | Full view |
Optical mode | AH-IPS, normally black display, transmissive |
Viewing angle | 80/80/80/80 (Min.)(CR≥10) |
responding speed | 35 (Typ.)(Tr+Td) ms |
Number of colors | 262K, 75% NTSC |
Backlight type | WLED, 10K hours, with LED driver |
Appearance style | Thin screen (PCBA straight, thickness ≤3.2mm) |
Refresh rate | 60Hz |
signal system | eDP (2 Lanes), connector, 30 pins |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
14.0 inch laptop ips display led lcd screen LP140WF1-SPU1 for Lenovo T440S |
Disclaimer:
The displayed panel parameters are all entered by YONGS store according to the specification, and the errors have been reduced as much as possible, but the correctness of the parameters cannot be guaranteed. Please refer to the specification!
Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Do you accept sample orders for LP140WF1-SPU1 (LGD03FF) ?
A: Of course!sample order is welcome!
Q: If I order LG Display LP140WF1-SPU1 (LGD03FF) now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: Can You declare my order of lcd panel LP140WF1-SPU1 (LGD03FF) at a very low value ?
A: Yes , we can . pls inform us before shipping .
