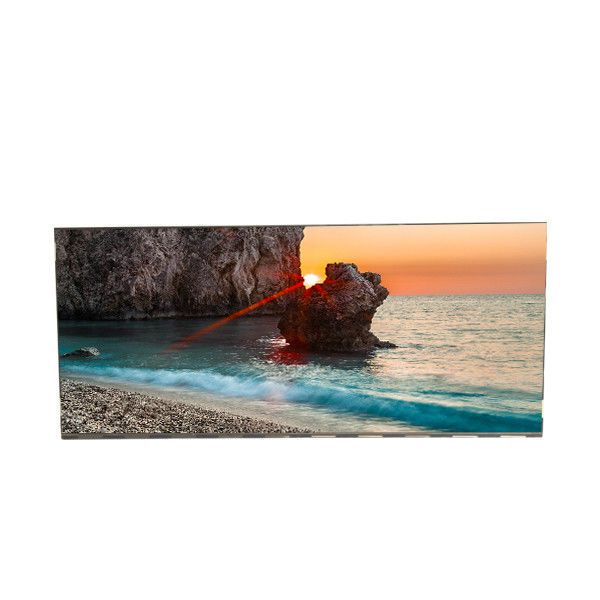

Original New 34 inch lcd Panel IPS LED Screen LM340UW1-SSA1
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM340UW1-SSA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM340UW1-SSA1 | Screen Size: | 34.0 Inch |
|---|---|---|---|
| Screen Type: | 3440(RGB)×1440 109PPI | Display Area: | 799.8(H)×334.8(V) Mm |
| Outline Size: | 820.8(H)×361(V) ×19.8(D) Mm | Support Color: | 1.07B 100% SRGB |
| Weight: | 3.71/3.90Kgs (Typ./Max.) | Designed For: | Desktop Monitor / Industrial / Medical Imaging |
Product Description
Original New 34 inch lcd Panel IPS LED Screen LM340UW1-SSA1
Product details :
| LG Display LCD SCREEN LM340UW1-SSA1 | |
| Manufacturer | LG Display |
| Model Name | LM340UW1-SSA1 |
| Screen Size | 34.0 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 3440(RGB)×1440 109PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 799.8 × 334.8 mm (H×V) |
| physical dimension | 820.8 × 361 × 19.8 mm (H×V×D) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 320 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | AH-IPS, normally black display, transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| responding speed | 14 (Typ.)(G to G) ms |
| Number of colors | 1.07B, 100% sRGB |
| Backlight type | 12S4P WLED, 30K hours, no driver |
| Screen weight | 3.71/3.90Kgs (Typ./Max.) |
| Refresh rate | 60Hz |
| signal system | LVDS (8 ch, 10-bit), connector, 174 pins |
| Supply voltage | 10.0V (Typ.) |
| Maximum rating | Maximum rating:Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| Original New 34 inch lcd Panel IPS LED Screen LM340UW1-SSA1 | |
LG Display LM340UW1-SSA1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 320 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 80% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can you give me a discount if I need a large quantity of LM340UW1-SSA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LM340UW1-SSA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LM340UW1-SSA1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LM340UW1-SSA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
