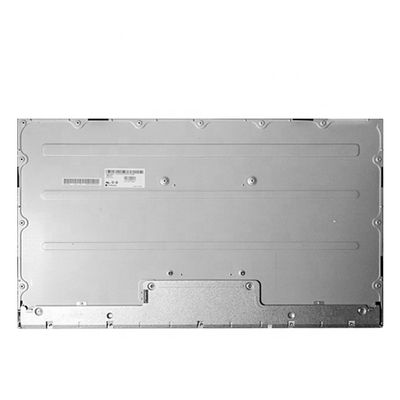

32.0 inch lcd screen LG LM315WR1-SSA1 tft ips panel lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM315WR1-SSA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM315WR1-SSA1 | Screen Size: | 32.0 Inch |
|---|---|---|---|
| Screen Type: | 3840(RGB)×2160 [UHD] 139PPI | Display Area: | 697.31(H)×392.23(V) Mm |
| Outline Size: | 709.2(H)×405.48(V) ×14.2(D) Mm | Response Time: | 14 (Typ.)(G To G) |
| Weight: | 4.52/4.75Kgs (Typ./Max.) | Designed For: | Desktop Monitor / Industrial |
Product Description
32.0 inch lcd screen LG LM315WR1-SSA1 tft ips panel lcd display
Product details :
| LG Display LCD SCREEN LM315WR1-SSA1 | |
| Manufacturer | LG Display |
| Model Name | LM315WR1-SSA1 |
| Screen Size | 32.0 inches |
| Panel type | a-Si TFT-LCD, LCD module |
| Number of pixels | 3840(RGB)×2160, UHD, 139PPI |
| Pixel layout | RGB vertical bar |
| Display area | 697.31(W)×392.23(H) mm |
| physical dimension | 709.2(W)×405.48(H) ×14.2(D) mm |
| Surface treatment | Matte (Haze 25%), Hard coating (3H) |
| Panel brightness | 350 cd/m² (Typ.) |
| Contrast | 1300:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating mode | IPS, normally black display, transmissive |
| Best perspective | Full view |
| Reaction time | 14 (Typ.)(G to G) ms |
| Display color | 1.07B, 99% sRGB |
| type of light source | 17S4P WLED, 30K hours, without driver |
| working frequency | 60Hz |
| Panel weight | 4.52/4.75Kgs (Typ./Max.) |
| Signal interface | eDP (4 Lanes), 30 pins, connector |
| Drive screen voltage | 10.0V (Typ.) |
| working environment | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| 32.0 inch lcd screen LG LM315WR1-SSA1 tft ips panel lcd display | |
LG Display LM315WR1-SSA1 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Do you accept sample orders for LM315WR1-SSA1 ?
A: Of course!sample order is welcome !
Q: If I order LM315WR1-SSA1 now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of LG Display LM315WR1-SSA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LCD panel LM315WR1-SSA1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
