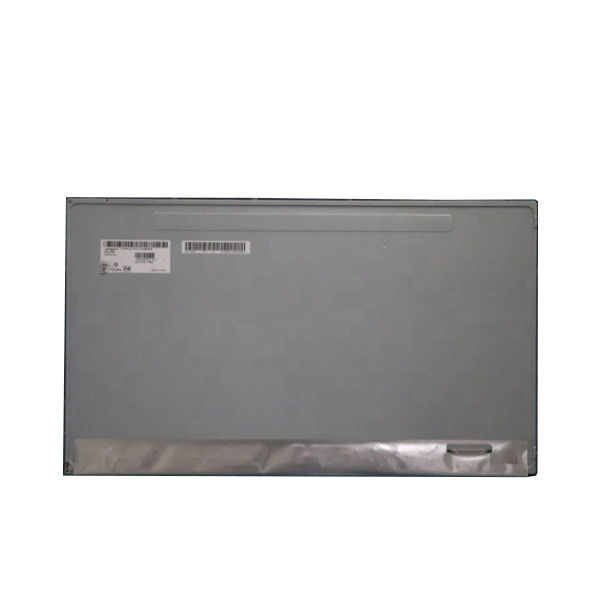

23 Inch LG LCD Display Panel LM230WF3-SLP8 For Computer
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF3-SLP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF3-SLP8 | Screen Size: | 23.0 Inch |
|---|---|---|---|
| Screen Type: | 1920(RGB)×1080 [FHD] 95PPI | Display Area: | 509.184(H)×286.416(V) Mm |
| Outline Size: | 533.2(H)×312(V) ×11(D) Mm | Bezel Opening: | 513.8(H)×291.0(V) Mm |
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| High Light: | 23 Inch LG LCD Display Panel,Computer lg monitor lcd panel |
||
Product Description
23 inch LG Display LCD Panel LM230WF3-SLP8 Designed For Computer
Product details :
| LG Display LCD SCREEN LM230WF3-SLP8 | |
| Manufacturer | LG Display |
| Model Name | LM230WF3-SLP8 |
| Screen Size | 23.0" |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 [FHD] 95PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 509.184 × 286.416 mm (H×V) |
| physical dimension | 533.2 × 312 × 11 mm (H×V×D) |
| Visual size | 513.8 × 291.0 mm (H×V) |
| Surface treatment | Matte (Haze 25%), Hard coating (3H) |
| Brightness (cd/m2) | 300 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | IPS, normally black display, transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| responding speed | 14 (Typ.)(G to G) ms |
| Number of colors | 16.7M, 72% NTSC |
| Backlight type | 18S2P WLED, 30K hours, no driver |
| Screen weight | 1.93/2.03Kgs (Typ./Max.) |
| Refresh rate:60Hz | 60Hz |
| signal system | LVDS (2 ch, 8-bit), connector, 30 pins |
| Supply voltage | Supply voltage:5.0V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 23 inch LG Display LCD Panel LM230WF3-SLP8 Designed For Computer | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
Payment and Shipment
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
FAQ:
Q: Can you give me a discount if I need a large quantity of LM230WF3-SLP8 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LM230WF3-SLP8 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of LM230WF3-SLP8 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of LM230WF3-SLP8 ?
A: Of course!sample order is welcome !
