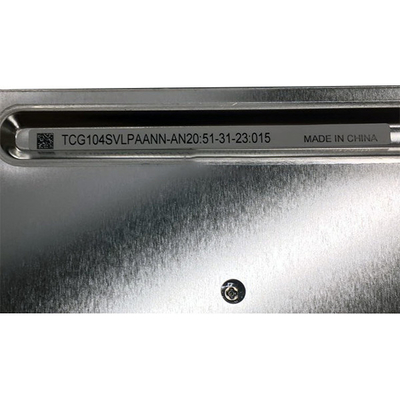

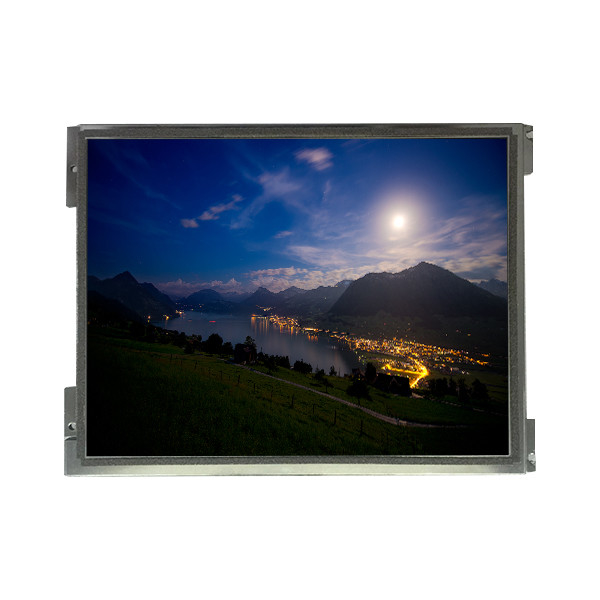

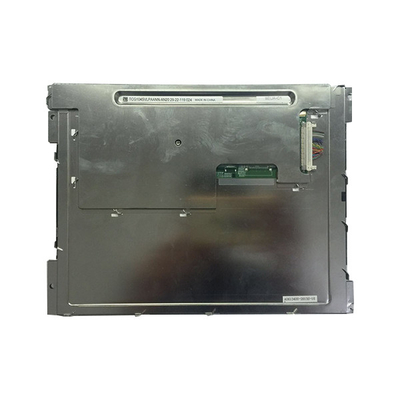

TCG104SVLPAANN-AN20 10.4 inch 800*600 lcd panel module TCG104SVLPAANN-AN20
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG104SVLPAANN-AN20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG104SVLPAANN-AN20 | Screen Size: | 10.4 Inches |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 (SVGA) 96PPI | Active Area(mm): | 211.2 × 158.4 (H×V) |
| Outline(mm): | 240.7 × 180.2 × 9.5 (H×V×D) | Visual Size: | 215.4 × 162.2 (H×V) |
| Luminance: | 450 (Typ.)(cd/m²) | Contrast Ratio: | 900 : 1 (Typ.) (TM) |
Product Description
TCG104SVLPAANN-AN20 10.4 inch 800*600 lcd panel module TCG104SVLPAANN-AN20
Product details :
| Kyocera LCD SCREEN TCG104SVLPAANN-AN20 | |
| manufacturer | Kyocera |
| Model Name | TCG104SVLPAANN-AN20 |
| screen size | 10.4 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 [FHD] 92PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 (H×V) |
| physical dimension | 240.7 × 180.2 × 9.5 (H×V×D) |
| Visual size | 215.4 × 162.2 (H×V) |
| surface treatment | Antiglare |
| Brightness | 450 (Typ.)(cd/m²) |
| Contrast | 900 : 1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Responding time | 8/22 (Typ.)(Tr/Td) ms |
| Number of color | 262K/16.2M 51% NTSC |
| Backlight type | WLED , 70K hours , With LED Driver |
| Panel weight | 460g |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| TCG104SVLPAANN-AN20 10.4 inch 800*600 lcd panel module TCG104SVLPAANN-AN20 | |
Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
Shipping and Package :
Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
FAQ:
Q: Do you accept sample orders for Kyocera TCG104SVLPAANN-AN20 ?
A: Of course!sample order is welcome !
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: Can You declare my order of lcd panel TCG104SVLPAANN-AN20 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of Kyocera TCG104SVLPAANN-AN20 ?
A: we will give you tracking number then you can trace your order form website.
